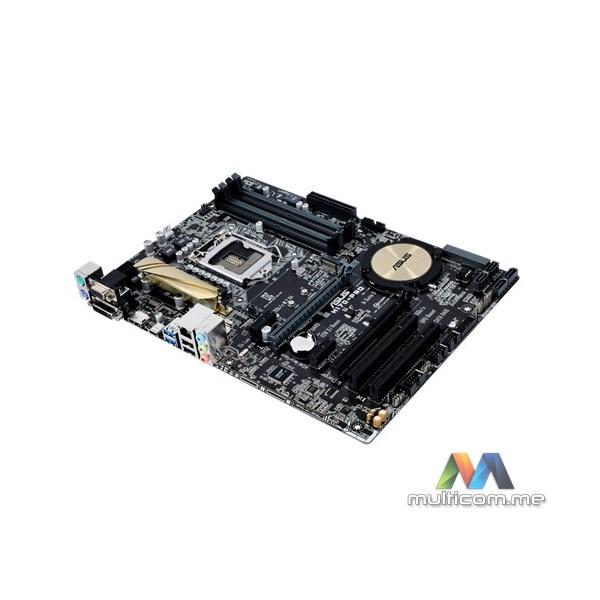

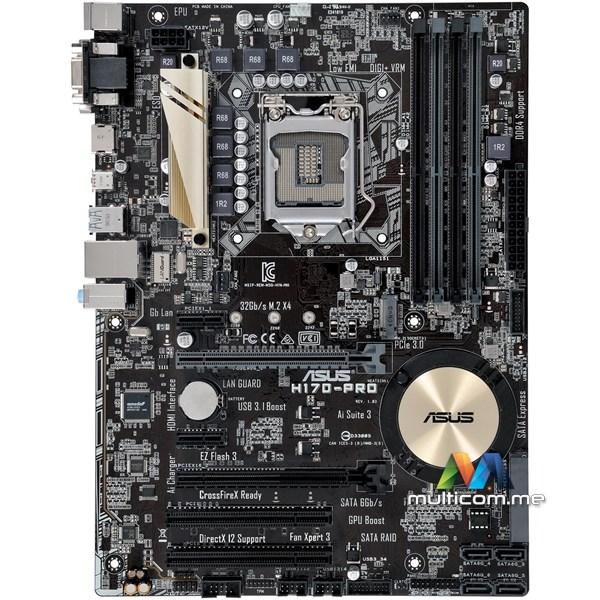

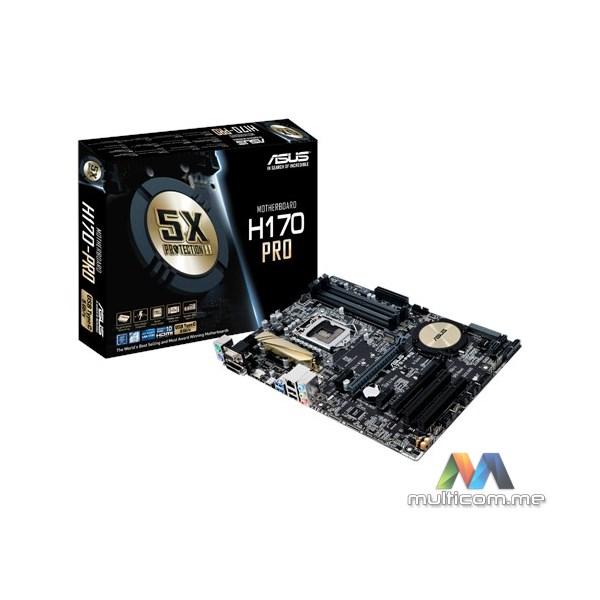

ASUS H170-PRO Maticna ploca

Asus Intel MB H170-PRO, DDR4, Skylake, Socket 1151

• 5X Protection II – Advanced hardware safeguards for all-round protection
• USB Type-C for convenient connectivity
• Epic gaming audio with noise-isolation design
• Media-acclaimed UEFI BIOS with EZ Flash 3
• Fan Xpert 3 advanced fan controls for ultimate cooling and silent performance
• Lightning-fast M.2 with PCIe® 3.0 x4 interface

• CPU
  Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® H170
• Memory
  4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
  * Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.
• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-D/RGB ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 3 displays simultaneously
• Multi-GPU Support
  Supports AMD Quad-GPU CrossFireX™ Technology
• Expansion Slots
  1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
  1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
  2 x PCIe 3.0/2.0 x1
  2 x PCI
• Storage
  Intel® H170 chipset :
  1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
  1 x SATA Express port, gray, Compatible with 2 x SATA 6.0 Gb/s ports
  6 x SATA 6Gb/s port(s), gray
  Support Raid 0, 1, 5, 10
  Supports Intel® Smart Response Technology*1
• LAN
  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC *2
  - Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• USB Ports
  Intel® H170 chipset :
  1 x USB 5Gb/s port(s) port(s) (1 at back panel, , Type-C, Reversible, Support 3A power output)
  Intel® H170 chipset :
  6 x USB 3.0/2.0 port(s) (2 at back panel, blue, Type-A, 4 at mid-board)
  Intel® H170 chipset :
  6 x USB 2.0/1.1 port(s) (2 at back panel, , Type-A, 4 at mid-board)
• Special Features
  ASUS 5X Protection II :
  - ASUS LANGuard - 2.5X higher surge tolerance
  - ASUS Overvoltage Protection - World-class circuit-protecting power design
  - ASUS DIGI+ VRM - 7 Phase digital power design
  - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
  - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - GPU Boost *3
  - AI Suite 3
  - Ai Charger
  - M.2 & SATA Express
  - Anti-Surge
  - Low EMI Solution
  - USB 3.0 Boost
  - Disk Unlocker
  - Mobo Connect
  - PC Cleaner
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution & MOS Heatsink
  - ASUS Fan Xpert 3
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM
  Media Streamer
• Operating System Support
  Windows® 10 , 64bit
  Windows® 8.1 , 64bit
  Windows® 7 , 32bit/64bit *4
