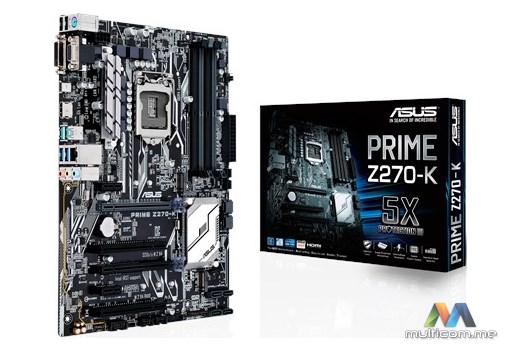

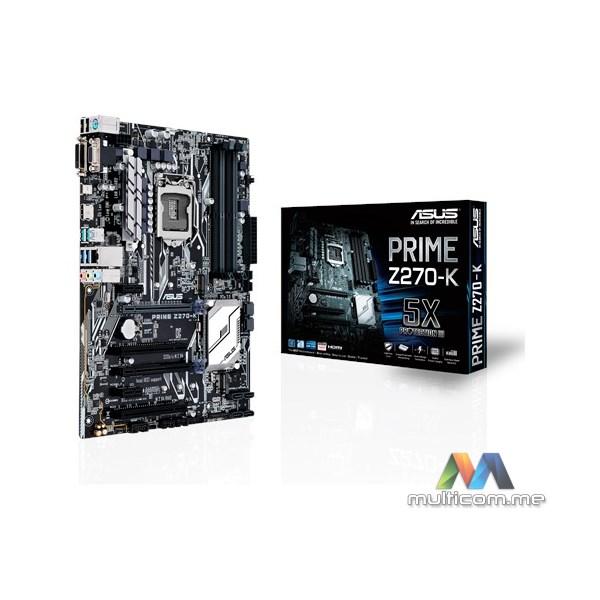

ASUS PRIME Z270-K Maticna ploca

Asus Intel MB PRIME Z270-K, DDR4 3866MHz, Kaby Lake, LED lighting, Dual M.2, LGA 1151, USB 3.1

Specifikacije

• Procesor
  Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Skup čipova
  Intel® Z270
• Memorija
  4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
• Grafika
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-D/RGB ports
  - Supports VGA with max. resolution 1920 x 1200 @ 60 Hz
  - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports up to 3 displays simultaneously
• Multi-GPU podrška
  Supports AMD CrossFireX™ Technology
• Slotovi za proširenja
  1 x PCIe 3.0/2.0 x16 (x16 mode)
  1 x PCIe 3.0/2.0 x16 (max at x4 mode)
  2 x PCIe 3.0/2.0 x1
  2 x PCI
• Skladištenje podataka
  1 x M.2 Socket 3*1, , with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
  1 x M.2 Socket 3*2, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
  6 x SATA 6Gb/s port(s), gray
  Support Raid 0, 1, 5, 10
  Supports Intel® Smart Response Technology*3
  Intel® Optane™ Memory Ready *5
• LAN
  Intel® I219V, 1 x Gigabit LAN Controller(s)
• Zvuk
  Realtek® ALC887 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• USB portovi
  ASMedia® USB 3.1 controller :
  2 x USB 3.1 port(s) (2 at back panel, +teal blue, Type-A)
  Intel® Z270 Chipset :
  1 x USB 5Gb/s port(s) port(s)
  Intel® Z270 Chipset :
  6 x USB 3.0 port(s) (2 at back panel, +blue)
  Intel® Z270 Chipset :
  6 x USB 2.0 port(s) (2 at back panel, )
• Posebne kaakteristike
  ASUS 5X Protection III :
  - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
  - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  - ASUS Overvoltage Protection: World-class circuit-protecting power design
  - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  - ASUS DIGI+ VRM: 7 Phase digital power design
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution & MOS Heatsink
  - ASUS Fan Xpert 4 Core
  ASUS EZ DIY :
  - ASUS O.C. Tuner
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-Slot
  - ASUS Q-DIMM
  Overclocking Protection :
  - ASUS C.P.R.(CPU Parameter Recall)
  M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
• I/O konektori na zadnjoj strani
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
  2 x USB 3.1 (teal blue)
  2 x USB 3.0 (blue) Type-A
  2 x USB 2.0
  1 x 8-channel Audio I/O
• Unutrašnji I/O konektori
  2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
  1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Clear CMOS jumper(s)
  1 x System panel connector
  1 x COM port header
  1 x AIO PUMP Header
