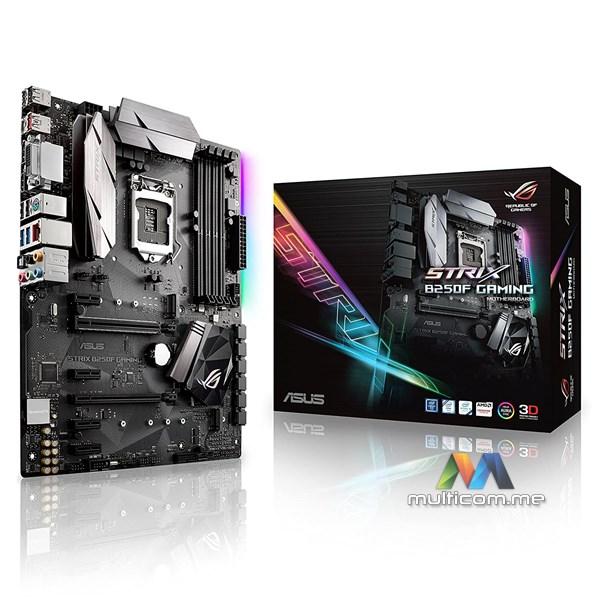

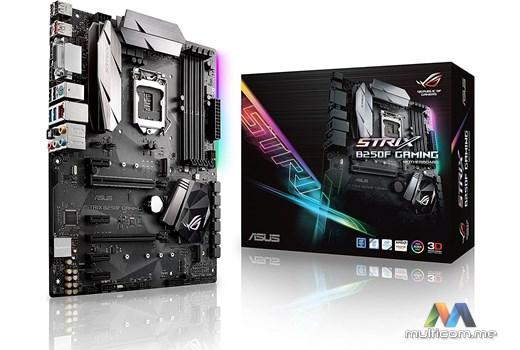

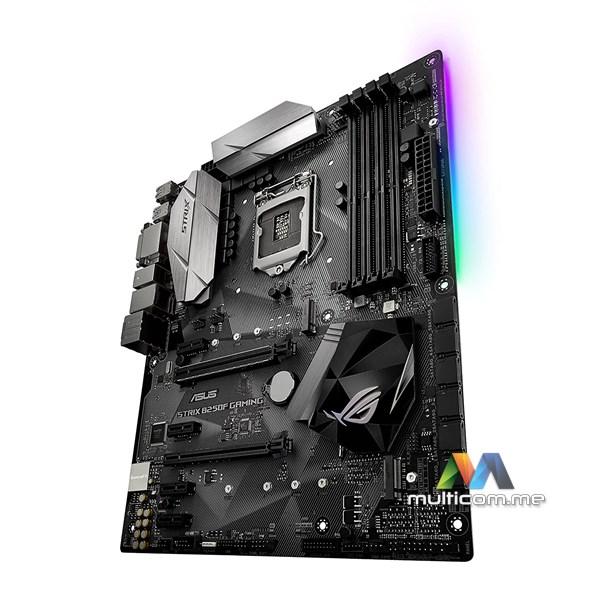

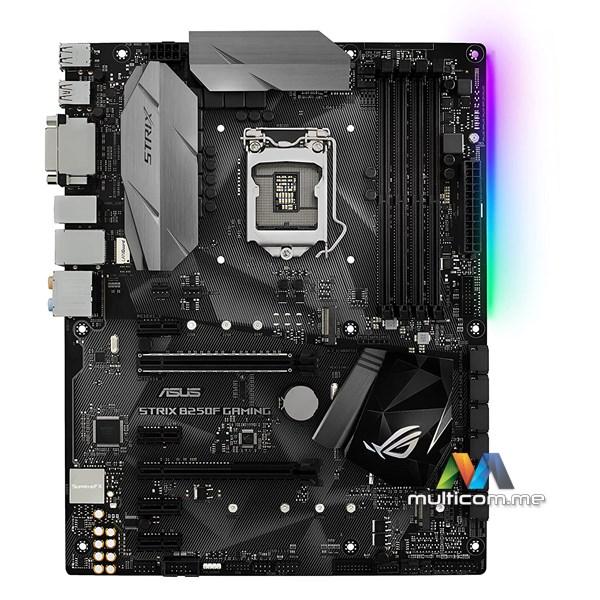

ASUS STRIX B250F GAMING Maticna ploca

ASUS STRIX B250F GAMING, 1151, B250, BUS 2000 MHz, DDR4, Broj utora 4, 2133,2400 MHz, da, PCIe 3.0 x16 2, PCIe x1 4, SATA 6Gb/s 6, 8-kanalni audio, 1x 10/100 Ethernet, Display Port 1, ATX, M.2 2, USB 3.1 1

• The successor to Pro Gaming motherboards
• FanXpert 4 allows for dynamic fan calibration and optimized system cooling while gaming
• Unmatched personalization with ASUS exclusive AURA Sync RGB lighting, an additional RGB header and a 3D-printing friendly mount
• Maximize your connectivity and speed with Dual M.2, front panel USB 3.1 and Intel® Optane™ Memory compatibility
• Patent-pending SafeSlot features an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
• Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220A driven by Japanese capacitors

Specifiaction

• CPU

  Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list

• Chipset

  Intel® B250

• Memory

  4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
  ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.

• Front Side Bus
• System Bus
• Thunderbolt
• Graphic

  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-D/DisplayPort 1.2 ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 3 displays simultaneously
  DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

• Multi-GPU Support

  Supports AMD 2-Way CrossFireX Technology

• CUDA Core
• Expansion Slots

  1 x PCIe 3.0/2.0 x16 (x16 mode)
  1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
  4 x PCIe 3.0/2.0 x1

• Storage

  Intel® B250 Chipset :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)*2
  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*3
  6 x SATA 6Gb/s port(s)

• LAN

  Intel® I219V
  Anti-surge LANGuard
  ROG GameFirst Technology

• Wireless Data Network
• Bluetooth
• ThunderBolt LAN/Audio Combo Card
• Audio

  ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
  - Dual Headphone Amplifiers
  - Impedance sense for front and rear headphone outputs
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  - SupremeFX Shielding Technology
  - Supports up to 32-Bit/192kHz playback *4
  Audio Feature :
  - Optical S/PDIF out port(s) at back panel
  - Sonic Radar III
  - Sonic Studio III

• ThunderFX
• IEEE 1394

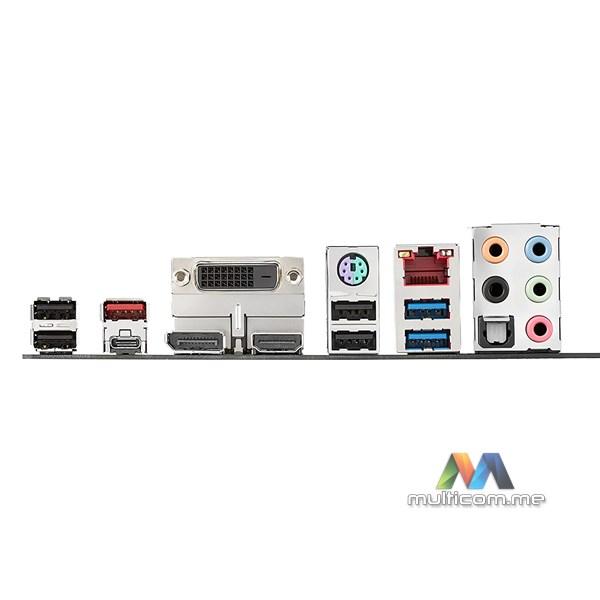

• USB Ports

  Intel® B250 Chipset :
  6 x USB 3.0 port(s) (2 at back panel, blue, 4 at mid-board)
  Intel® B250 Chipset : *5
  6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
  ASMedia® USB 3.1 controller :
  2 x USB 3.1 port(s) (Type-A + Type-C, Support 3A power output)

• Workstation Feature
• OC Panel
• OC Panel II
• ROG Exclusive Features

  ROG RAMCache II
  ROG CPU-Z
  ROG CloneDrive
  Overwolf
  GameFirst IV
  ROG Aura
  - Aura Lighting Control
  - Aura RGB Strip Headers

• Special Features

  Gamer's Guardian:
  - DRAM Overcurrent Protection
  - Stainless Steel Back I/O
  - Highly Durable Components
  - DIGI+ VRM
  - SafeSlot
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  - ESD Guards
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  Gaming Aesthetics :
  - 3D printing friendly
  - AURA-RGB Lighting
  Performance Optimization :
  - DIGI + VRM
  - GPU Boost
  - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
  - AI Suite 3
  M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
