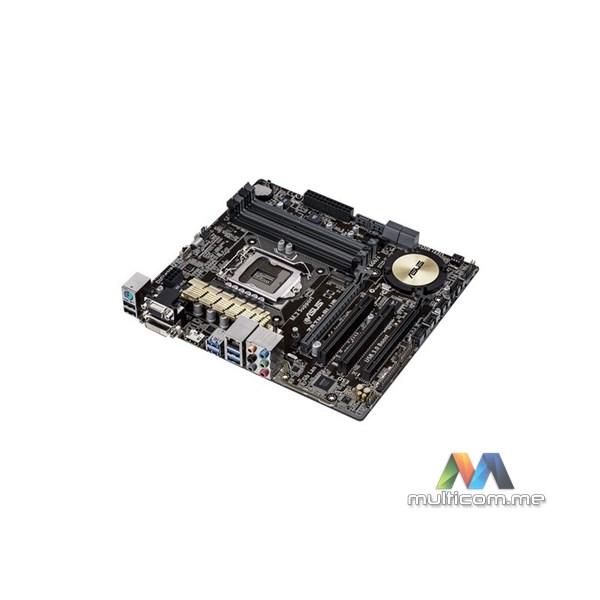

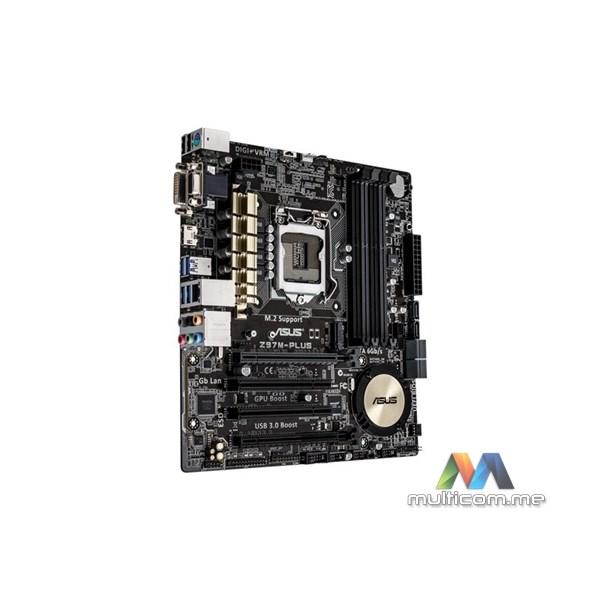

ASUS Z97M-PLUS Maticna ploca

ASUS Z97M-PLUS, 1150, Intel® Z97, DDR3, Broj utora 4, 1333,1600 MHz, PCI 2, PCIe x16 1, PCIe x4 1, SATA3 6, RAID 0,1,1+0,5, 8-kanalni audio, 1x 10/100/1000 Ethernet, USB 3.0 4, USB 2.0 3, mATX

• Proven quality - 5X Protection. 1000+ compatible devices. 7000+ validation hours.
• Crystal Sound 2 and Intel Gigabit Ethernet — a game-winning combo!
• Speed up your system with lightning-fast 10Gb/s M.2
• Fan Xpert 3 - Advanced fan controls for ultimate cooling and quietness
• Media-acclaimed UEFI BIOS with new EZ Tuning Wizard
• ASUS HomeCloud - A digital PC hub perfect for sharing and home theater
• Upgrade flexibility to ultimate-speed 10Gbit/s with ASUS USB 3.1 Card

• CPU
  Intel® Socket 1150 for the 5th/New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 22 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® Z97
• Memory
  4 x DIMM, Max. 32GB, DDR3 3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2250(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory *
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-D/RGB ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 512 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 3 displays simultaneously
• Multi-GPU Support
  Supports AMD Quad-GPU CrossFireX™ Technology
• Expansion Slots
  1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
  1 x PCIe 2.0 x16 (x4 mode, black)
  2 x PCI
• Storage
  Intel® Z97 chipset :
  1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*1
  6 x SATA 6Gb/s port(s), gray
  Support Raid 0, 1, 5, 10
  Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *2
• LAN
  Intel® I218V, 1 x Gigabit LAN Controller(s)
  Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  Audio Feature :
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Audio amplifier: Provides the highest-quality sound for headphone and speakers
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  - Unique de-pop circuit: Reduces start-up popping noise to audio outputs
• USB Ports
  Intel® Z97 chipset :
  6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
  Intel® Z97 chipset :
  8 x USB 2.0/1.1 port(s) (2 at back panel, black, 6 at mid-board)
• Special Features
  ASUS 5X Protection :
  - ASUS DIGI+ VRM - 4 Phase digital power design
  - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
  - ASUS ESD Guards - Enhanced ESD protection
  - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
  - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - TurboV EVO
  - GPU Boost
  - MemOK!
  - AI Suite 3
  - Ai Charger
  - Anti-Surge
  - USB 3.0 Boost
  - Disk Unlocker
  - Crystal Sound 2
  Interactive HomeCloud
  - Media Streamer
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution & MOS Heatsink
  - ASUS Fan Xpert 3
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  - ASUS UEFI BIOS EZ Mode
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM
• Operating System Support
  Windows® 8.1
  Windows® 8
  Windows® 7
• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.0 (blue)
  2 x USB 2.0
  6 x Audio jack(s)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  1 x M.2 Socket 3 for M Key, type 2260/2280 devices
  1 x TPM header
  1 x LPT header
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x MemOK! button(s)
  1 x GPU Boost switch(es)
  1 x Clear CMOS jumper(s)
• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
• BIOS
  64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
