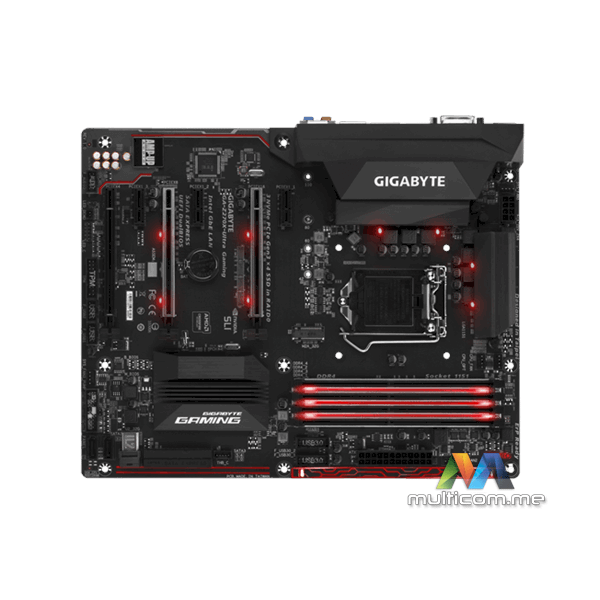

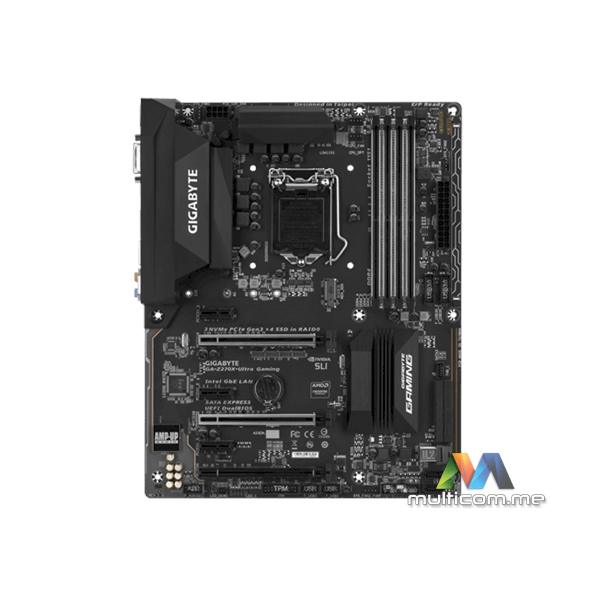

Gigabyte GA-Z270X-Ultra Gaming 1.0 Maticna ploca

Gigabyte (DDR4) Kaby Lake Z270X-Ultra Gaming /s1151, Intel® Z270 Express Chipset, 4xDDR4, 3xPCI Express x16 slot, 3xPCI Express x1, M.2 conn., U.2 conn., HDMI, DVI-D, RAID 0.1.5.10, /

• Supports 7th/ 6th Generation Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Fast USB 3.1 Gen 2 with USB Type-C™ and Type-A
• 3-Way Graphics Support with Dual Armor and Ultra Durable™ Design
• Dual NVMe PCIe SSDs in RAID 0 Support
• NVMe PCIe Gen3 x4 U.2 Connector
• Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
• Intel® Optane™ Memory Ready
• ALC1220 120dB SNR HD Audio with Smart Headphone Amp
• Intel® GbE LAN with cFosSpeed Internet Accelerator Software
• USB DAC-UP 2 with Adjustable Voltage
• RGB FUSION LED Light Show design
• Swappable Overlay for Accent LED
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
• Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
• GIGABYTE UEFI DualBIOS™
• APP Center Including EasyTune™ and Cloud Station™ Utilities

Specifikacije

• CPU
  1. Support for 7th and 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  2. L3 cache varies with CPU

  (Please refer "CPU Support List" for more information.)
• Chipset
  1. Intel® Z270 Express Chipset
• Memory
  1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
     * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
     * Support for HDMI 1.4 version.
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
     * The DVI-D port does not support D-Sub connection by adapter.

  Maximum shared memory of 1 GB
• Audio
  1. Realtek® ALC1220 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF Out
• LAN
  1. Intel® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
     * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
  3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
     * The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. When the PCIEX1_2 or PCIEX1_3 slot is populated, the PCIEX4 slot operates at up to x1 mode.
  4. 3 x PCI Express x1 slots
     (All of the PCI Express slots conform to PCI Express 3.0 standard.)
• Storage Interface
  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
  2. 1 x U.2 connector
  3. 2 x SATA Express connectors
  4. 6 x SATA 6Gb/s connectors
  5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
     * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
• Multi-Graphics Technology
  1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
  2. Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
• USB
  Chipset+ASMedia® ASM2142 USB 3.1 Gen 2 Controller:

  1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
  2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

  Chipset:

  1. 8 x USB 3.1 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x U.2 connector
  4. 1 x M.2 Socket 3 connector
  5. 2 x SATA Express connectors
  6. 6 x SATA 6Gb/s connectors
  7. 1 x CPU fan header
  8. 1 x water cooling CPU fan header
  9. 2 x system fan headers
  10. 1 x system fan/water cooling pump header
  11. 1 x front panel header
  12. 1 x front panel audio header
  13. 2 x USB 3.1 Gen 1 headers
  14. 2 x USB 2.0/1.1 headers
  15. 1 x RGB (RGBW) LED strip extension cable header
  16. 1 x S/PDIF Out header
  17. 1 x Trusted Platform Module (TPM) header
  18. 1 x Thunderbolt™add-in card connector
  19. 1 x Clear CMOS jumper

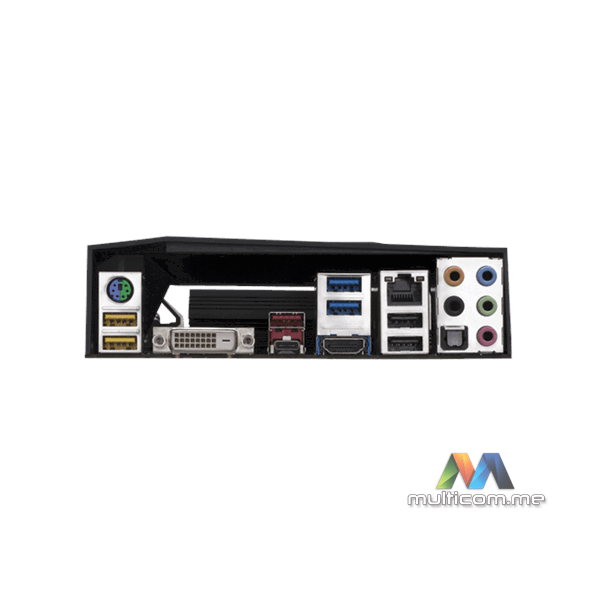

• Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
  3. 1 x USB 3.1 Gen 2 Type-A port (red)
  4. 1 x DVI-D port
  5. 1 x HDMI port
  6. 4 x USB 3.1 Gen 1 ports
  7. 2 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 1 x optical S/PDIF Out connector
  10. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
