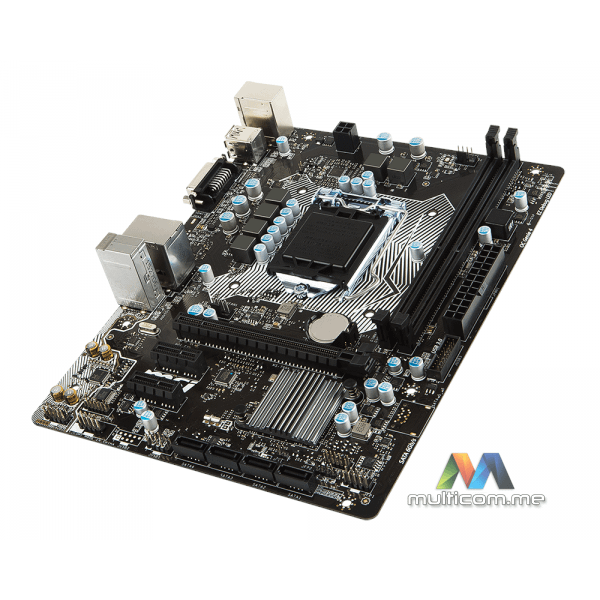

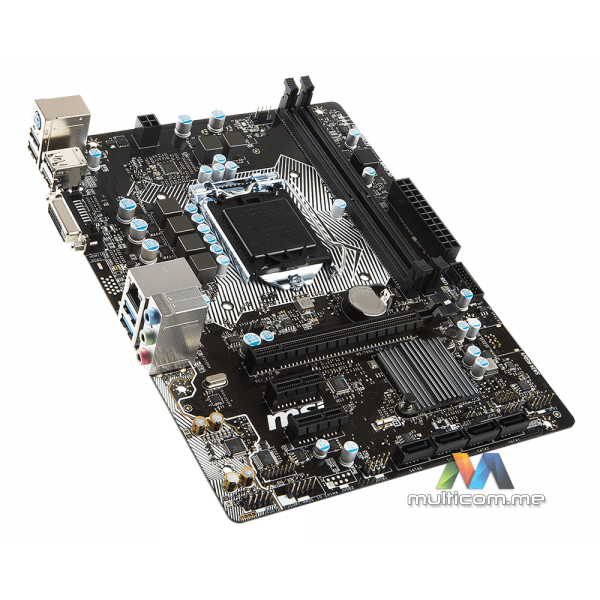

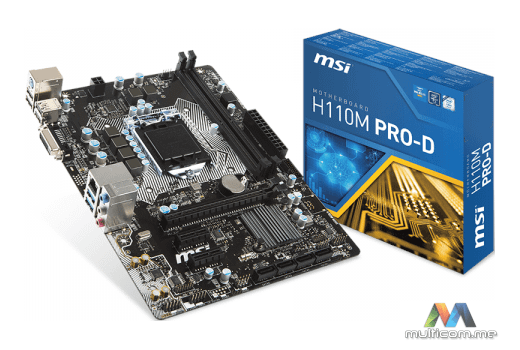

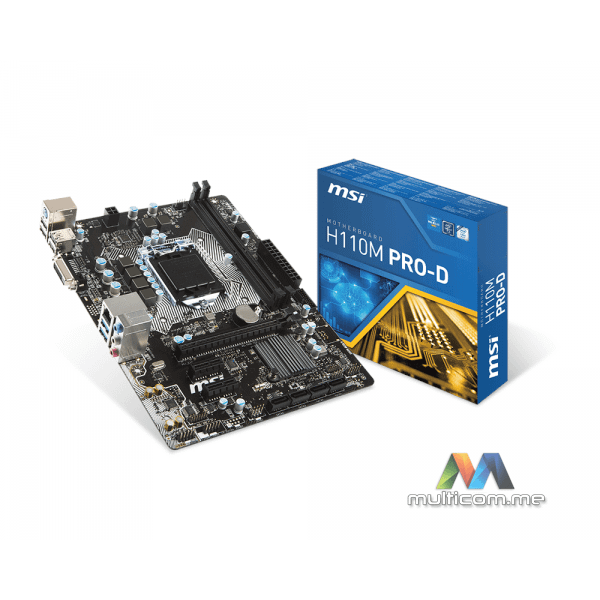

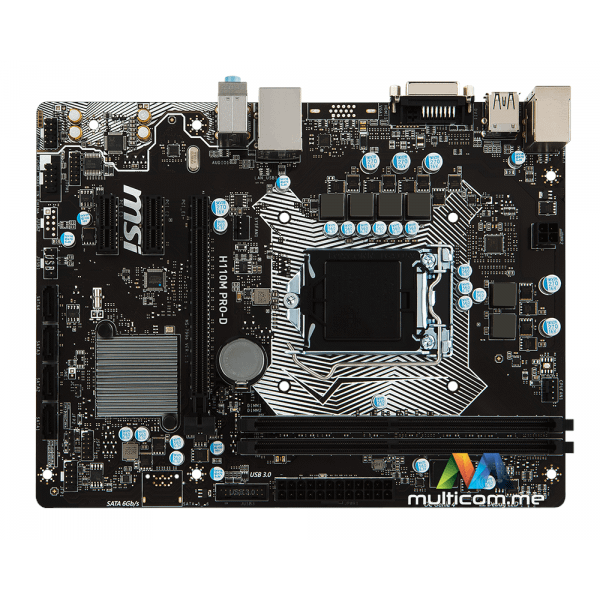

MSI H110M PRO-D Maticna ploca

MSI Skylake s1151 H110M PRO-D /s1151, Intel® H110 Chipset, 2xDDR4, PCI-Ex16, 2xPCI-Ex1, GLan, 2+2 (front+rear) x USB 3.1, DVI/

• Supports 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
• Supports DDR4-2133 Memory
• DDR4 Boost: Give your DDR4 memory a performance boost
• USB 3.1 Gen1 + SATA 6Gb/s
• VGA Armor: Reinforced Armor slot
• Click BIOS: Secure and Reliable UEFI BIOS solution
• Audio Boost: Reward your ears with studio grade sound quality
• Military Class 4: Top Quality & Stability
• Guard-Pro: Improved Protection and Power Efficiency
• EZ Debug LED: Easiest way to troubleshoot
• Overvoltage Protection:Prevent Unforeseen Damage
• Intel® SBB Support: Improves Productivity, Management and Security
• WHQL CERTIFIED.WINDOWS 10 READY.

Specification

• Socket
  1151
•
• CPU (Max Support)
  i7
•
• Chipset
  Intel® H110 Chipset
•
• DDR4 Memory
• 2133 MHz
•
• Memory Channel
  Dual
•
• DIMM Slots
  2
•
• Max Memory (GB)
  32
•
• PCI-Ex16
  1
•
• PCI-E Gen
  Gen3
•
• PCI-Ex1
  2
•
• SATAIII
  4
•
• TPM (header)
  1
•
• LAN
  10/100/1000*1
•
• USB 3.1 ports(Front)
  2(Gen1)
•
• USB 3.1 ports (Rear)
  2(Gen1)
•
• USB 2.0 ports (Front)
  2
•
• USB 2.0 ports (Rear)
  4
•
• Audio ports (Rear)
  3
•
• DVI
  1
•
• DirectX
  DX12
•
• Form Factor
  M-ATX
