Opis

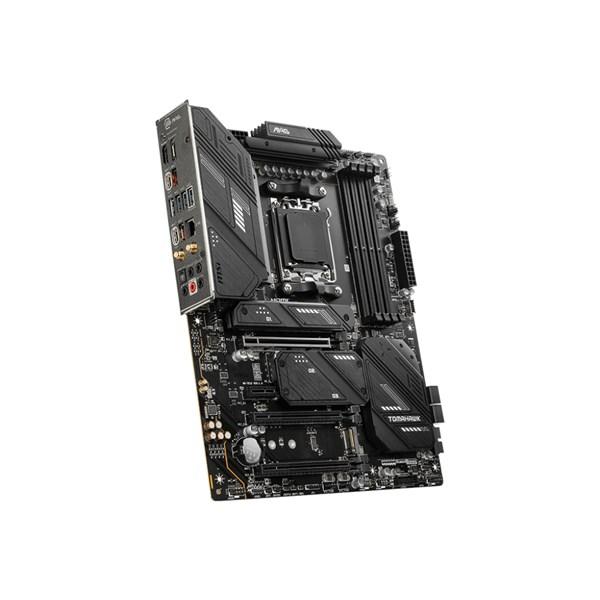

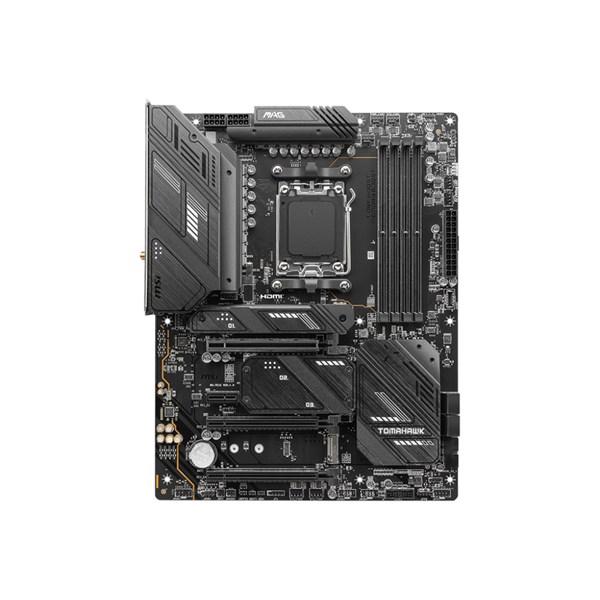

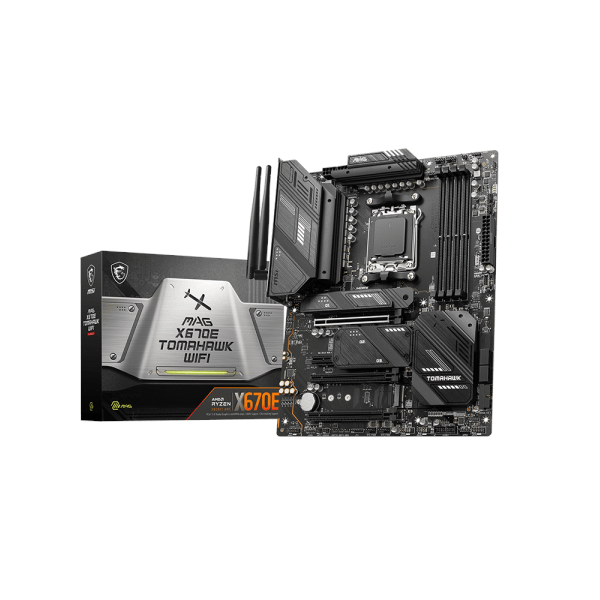

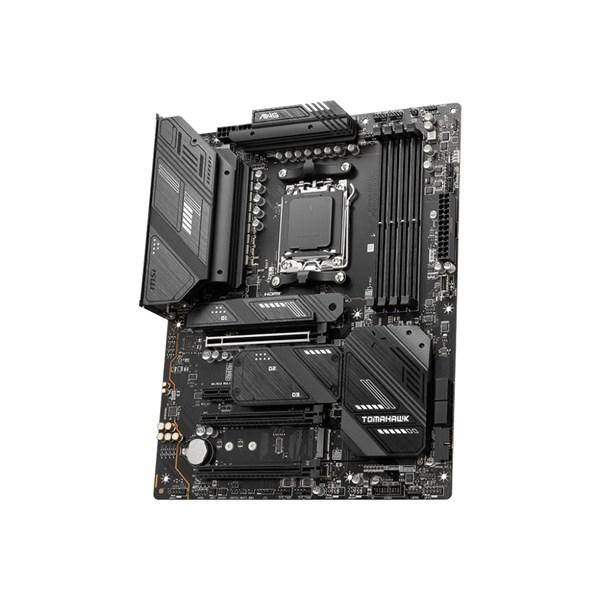

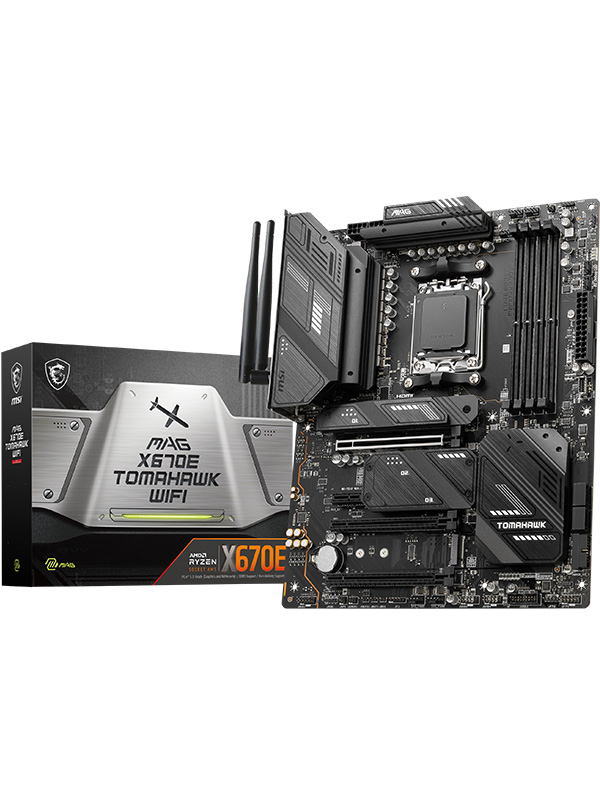

MAG X670E TOMAHAWK WIFI
Unite as OneThe MAG X670E TOMAHAWK WIFI is a gaming oriented ATX motherboard constructed around the latest AMD X670 chipset that balances value with premium hardware.
- Supports AMD Ryzen 7000 Processors (Zen 4, AM5)
- 14 Duet Rail Power System CPU power with 80A SPS
- 1 x PCIe 5.0 x16 slot, 2 x PCIe 4.0 x16 slots, 1 x PCIe 3.0 x1 slot
- 4 x DDR5 DIMMs with Memory Boost: Dual Channel (128GB Max. / 6600MHz OC)
- Lightning Gen5 M.2 & M.2 Shield Frozr
- 8-Channel (7.1) HD Audio with Audio Boost
- USB 3.2 Gen 2x2 Type-C (20Gbps)
- 2.5G LAN, AMD Wi-Fi 6E & Bluetooth 5.3
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today's performance limits.

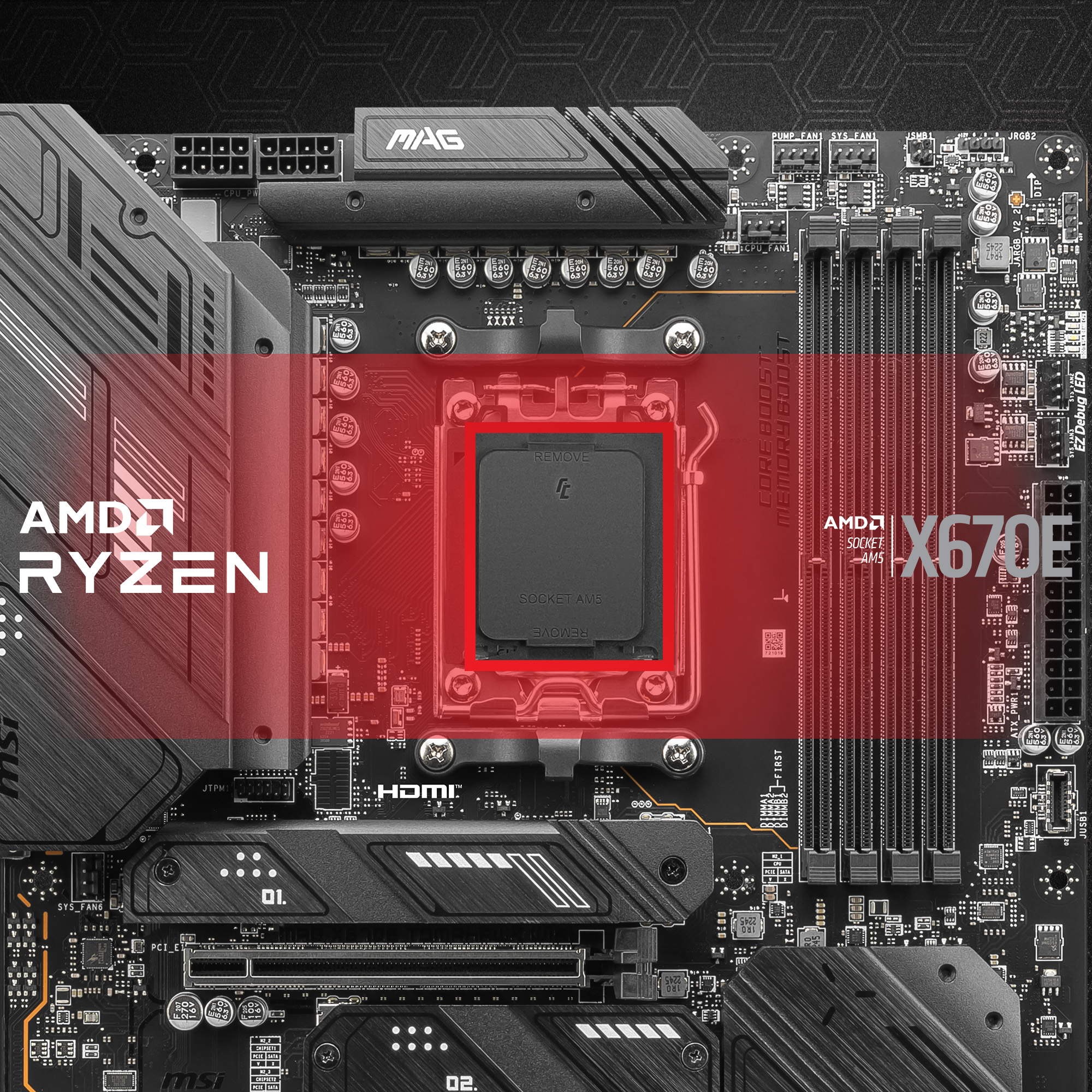

Supports AMD Ryzen 7000 Processors
The MAG X670E TOMAHAWK WIFI motherboard supports AMD Ryzen 7000 processors.Form Factor: ATX
Socket Type: AM5
Chipset: AMD X670

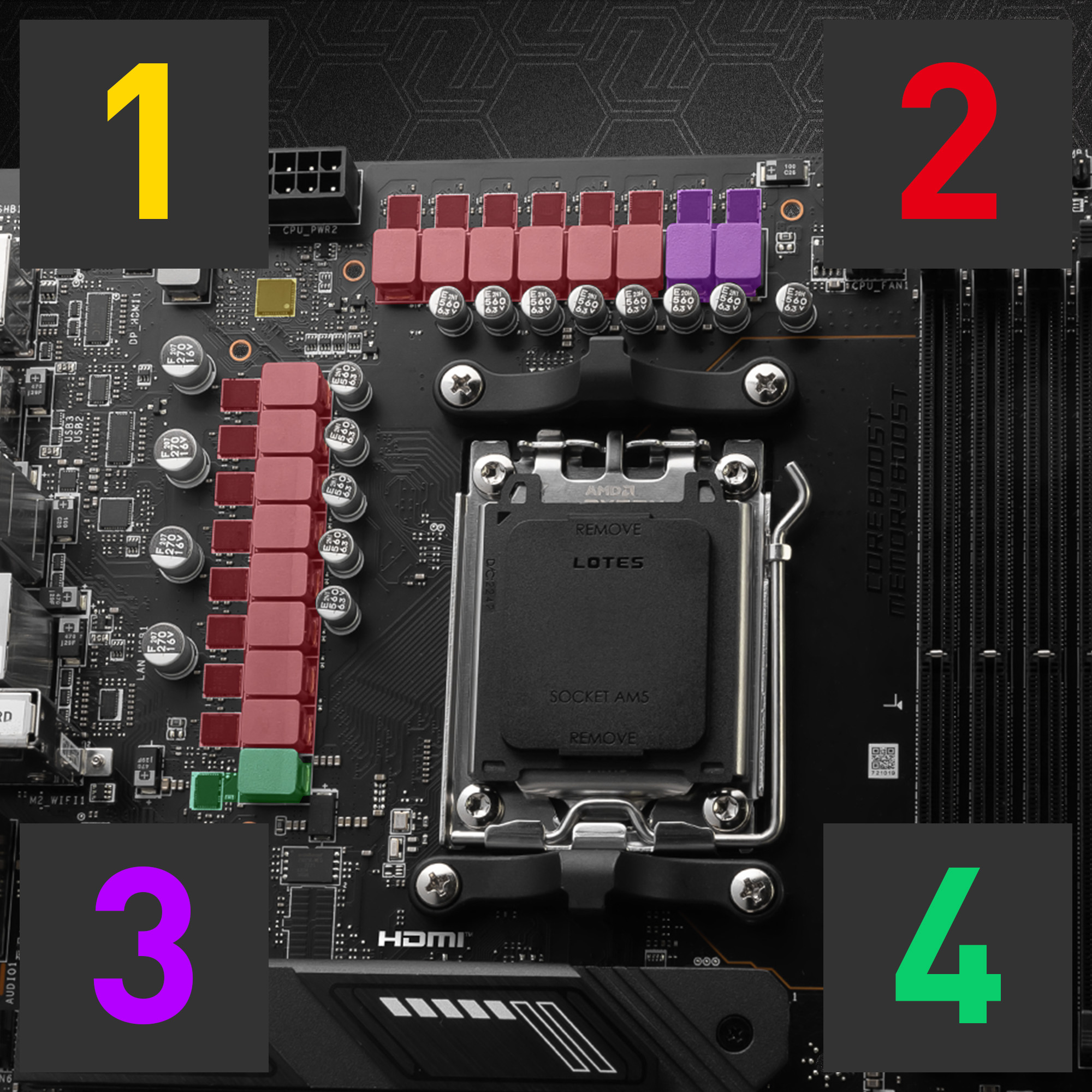

14+2+1 Duet Rail Power System with 80A Smart Power Stage
With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG X670E TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:- Digital PWM IC
- 14-Phase Duet-Rail Power (SPS / 80A)
- 2-Phase SOC Power
- 1-Phase MISC Power

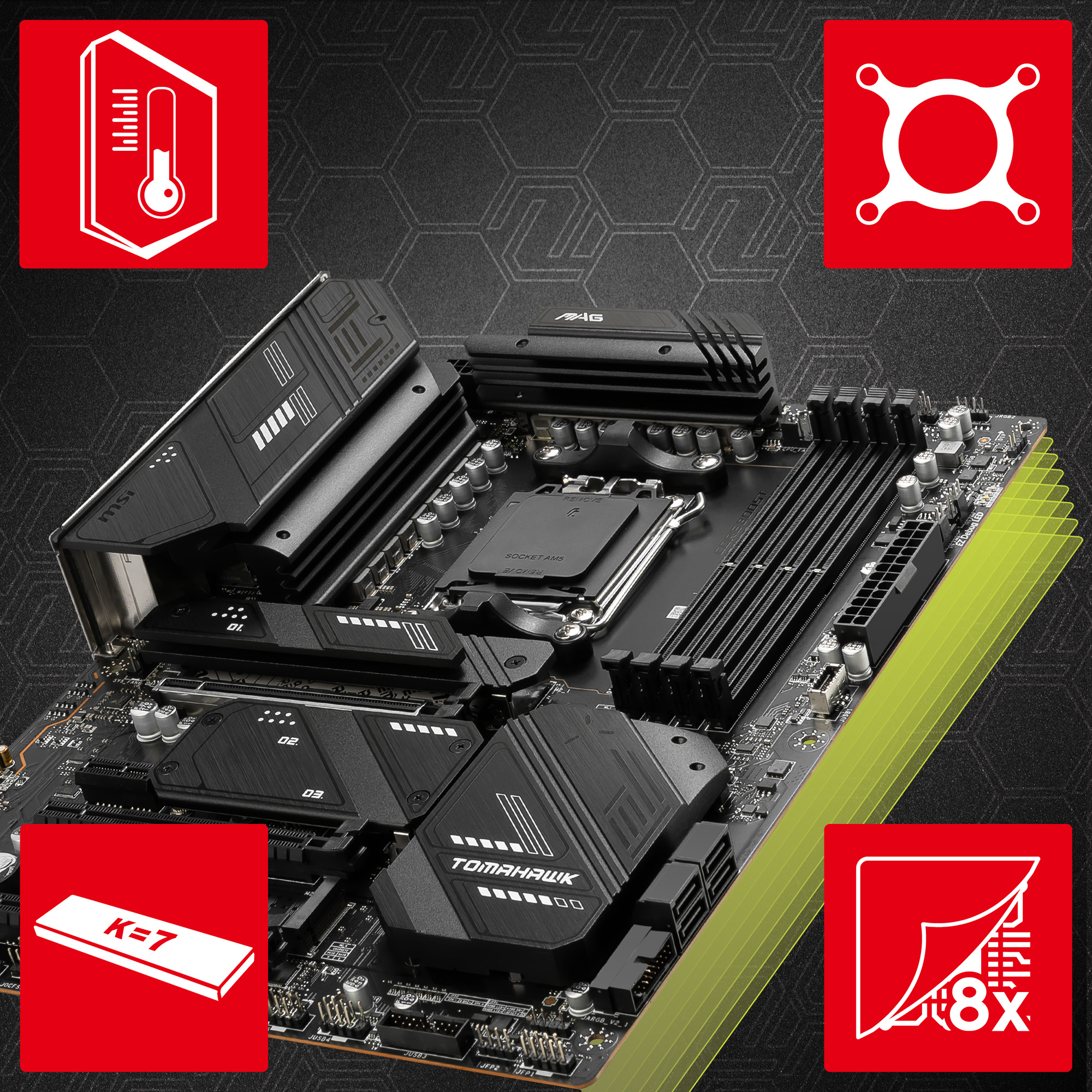

Integrated Cooling Features
VRM Cooling: Features an extended heatsink and 7W/mK thermal padsPCB Cooling: Premium 8-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.

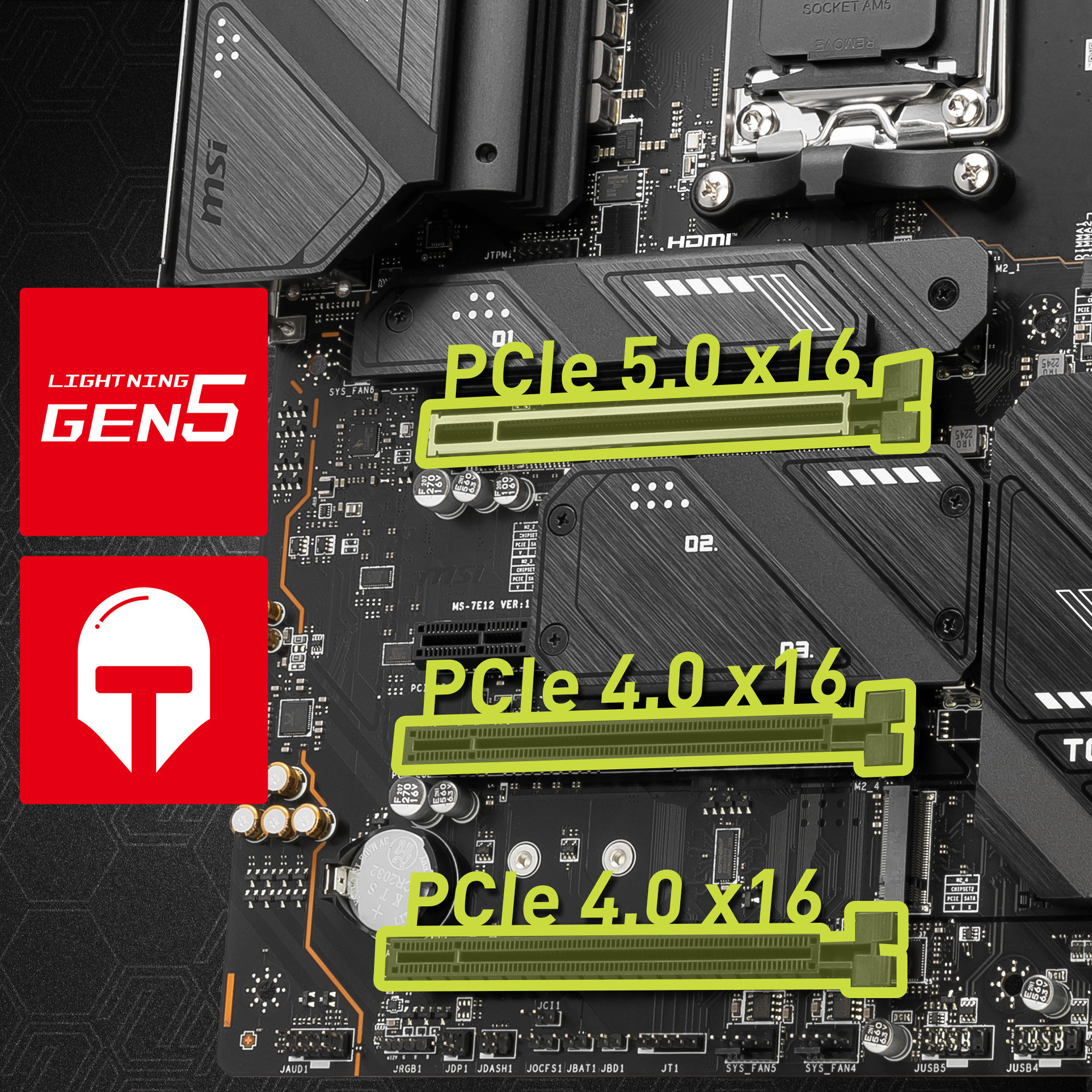

Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:1 x PCIe 5.0 x16 slot* (Primary with Steel Armor)
2 x PCIe 4.0/3.0 x16 slots*
1 x PCIe 3.0 x1 slot
*Supports x16/x4/x2

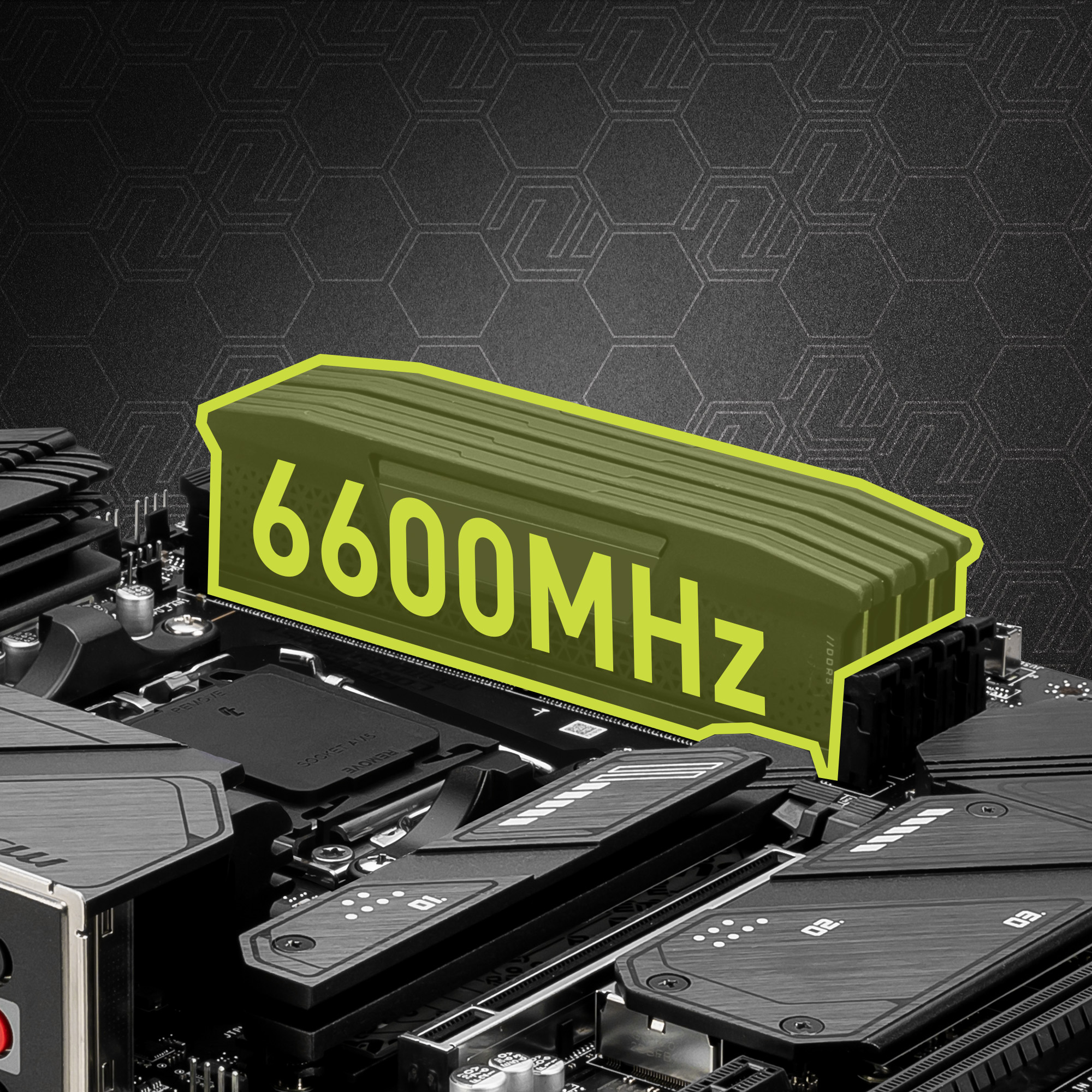

4 x DDR5 Dual Channel (6600+ MHz OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 6600 MHz, supports AMD EXPO.

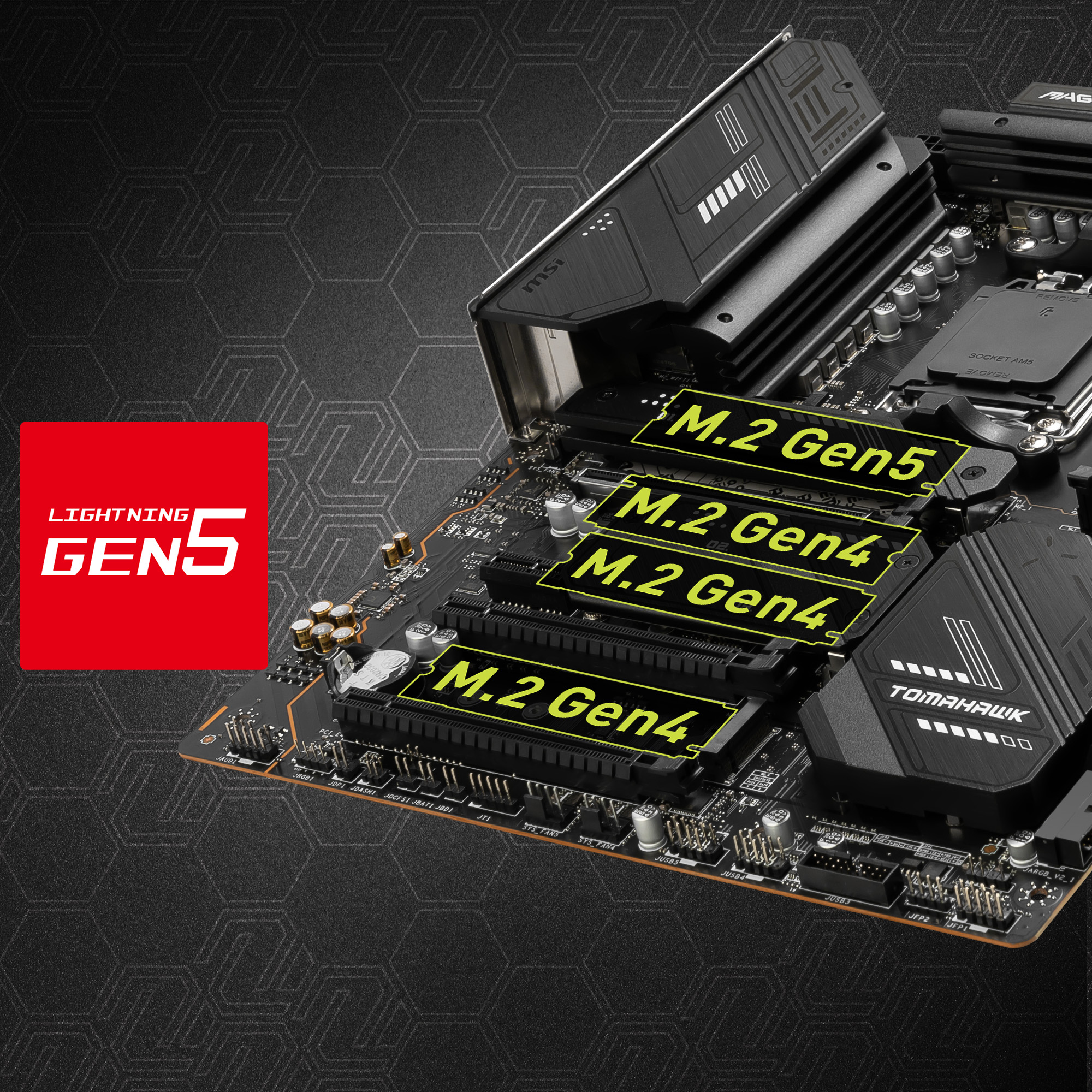

Gen5 M.2 Connectors
The MAG X670E TOMAHAWK WIFI motherboard features MSI's latest M.2 slots:1 x Gen5 x4 128Gb/s slot*
3 x Gen4 x4 64Gb/s slots**
*1 with Double-Sided M.2 Shield Frozr
**2 with M.2 Shield Frozr

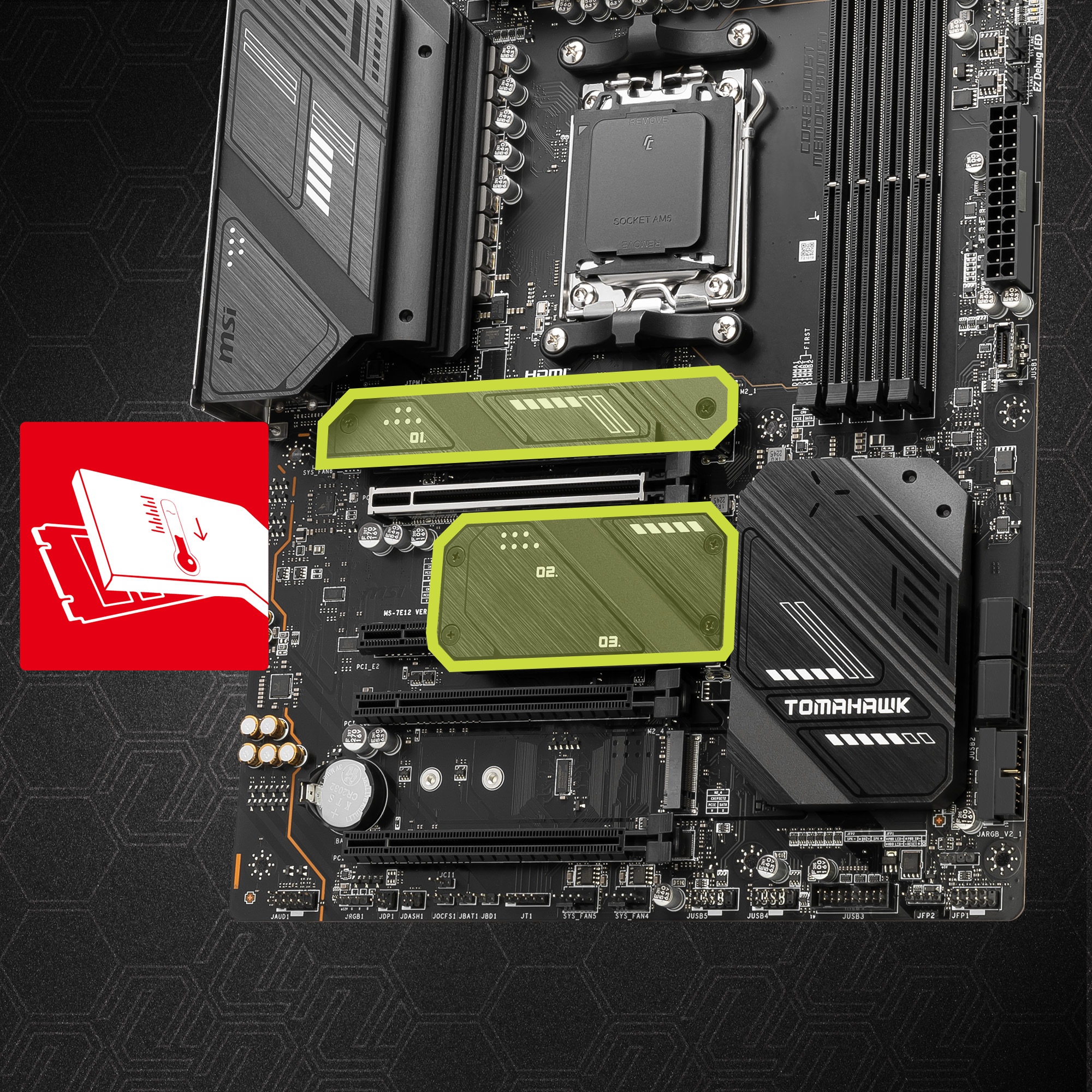

M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

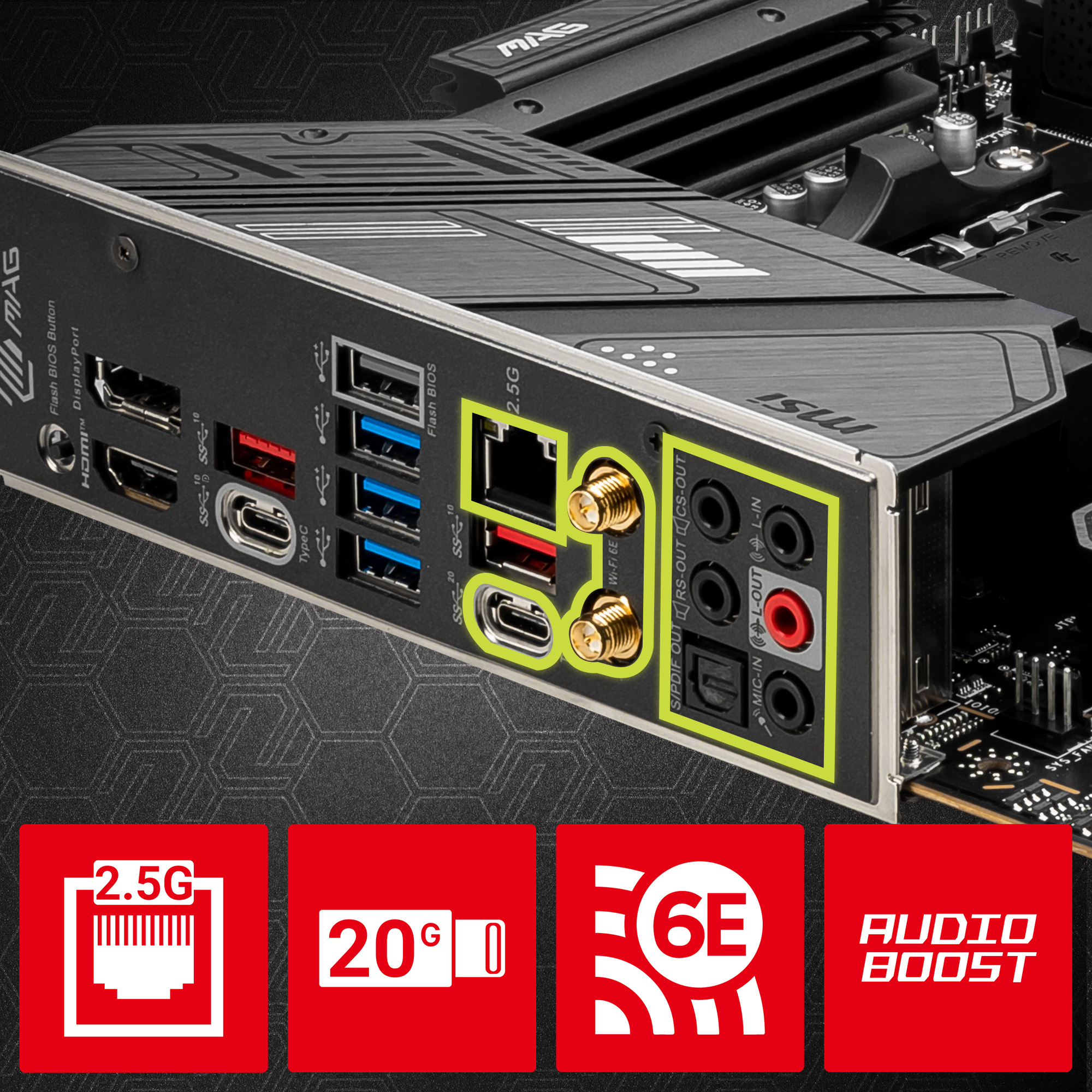

Wi-Fi 6E & Bluetooth 5.3
22.5G LAN: A Realtek RTL8125BG 2.5Gbps LAN controller delivers a premium network gaming experience.Wi-Fi 6E: Features an AMD Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.
HD Audio: 8-Channel (7.1) HD Audio with Audio Boost
.jpg)
Zakonska garancija: 24 mjeseca/i
Zagarantovana sva prava i obaveze sadržane u Zakonu o zaštiti potrošača
Više detalja o artiklu mozete pronaći na web stranici proizvođača na ovoj adresi
Specifikacije
Procesor
| Proizvođač procesora | AMD |
|---|---|
| Podnožje procesora | Priključak AM5 |
| Kompatibilni procesori | AMD Ryzen™ 7 |
| AMD Opteron series | 7000 |
| Maksimalni broj SMP procesora | 1 |
| Podržana ležišta procesora | Priključak AM5 |
Memorija
| Podržani tipovi memorije | DDR5-SDRAM |
|---|---|
| Broj memorijskih slotova | 4 |
| Memorijski kanali | Dvokanalna |
| ECC (memorija sa kodom za proveru grešaka) | |
| Ne-ECC | |
| Podržane brzine memorije | 4800,5000,5200,5400,5600,5800 6000,6200,6400,6600 MHz |
| Podržana brzina memorije (maks.) | 6600 MHz |
| Maksimalna veličina interne memorije | 128 GB |
Kontroleri skladišta
| Podržani interfejsi uređaja za skladištenje | M.2, SATA |
|---|---|
| RAID podrška | |
| RAID varijante | 0, 1, 10 |
Interne konekcije
| USB 2.0 konektori | 4 |
|---|---|
| USB 3.2 (3.1 gen. 1) konektori | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) konektori | 1 |
| Broj SATA III priključaka | 4 |
| Prednji panel sa audio konektorima | |
| Konektor prednje table | |
| ATX konektor (24-pin) | |
| Priključak ventilatora za procesor | |
| Konektor za detekciju otvaranja kućišta | |
| TPM konektor | |
| RGB LED trakica |

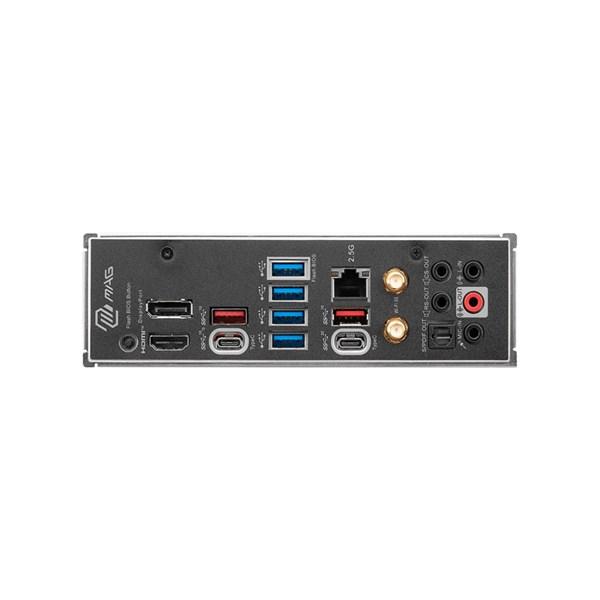

I/O portovi na zadnjem panelu
| Broj USB 2.0 portova | 4 |
|---|---|
| Broj portova USB 3.2 Gen 1 (3.1 Gen 1) tip A | 4 |
| Broj portova USB 3.2 Gen 2 (3.1 Gen 2) tip A | 2 |
| Broj portova USB 3.2 Gen 2 (3.1 Gen 2) tip C | 1 |
| Broj USB 3.2 Gen 2x2 Tip-C priključaka | 1 |
| Broj Ethernet LAN (RJ-45) portova | 1 |
| Broj HDMI portova | 1 |
| HDMI verzija | 2.1 |
| Broj DisplayPortova | 1 |
| Verzija DisplayPorta | 1.4 |
| Priključak za mikrofon/ulaz | |
| S/PDIF izlazni port |
Mreža
| Eternet LAN | |
|---|---|
| Tip Eternet interfejsa | 2.5 Gigabit Ethernet |
| LAN kontroler | Realtek RTL8125-BG |
| Wi-Fi | |
| Vrhunski Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standardi | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | |
| Bluetooth verzija | 5.3 |
Karakteristike
| Skup čipova matične ploče | AMD X670 |
|---|---|
| Audio čip | Realtek ALC1200 |
| Izlazni audio kanali | 7.1 kanali |
| Boja proizvoda | Crno |
| Komponenta za | PC |
| Standard dimenzija matične ploče | ATX |
| Porodica čipseta matične ploče | AMD |
| Izvor napajanja | ATX |
| Podržani su Windows operativni sistemi | Windows 10, Windows 11 |
Konektori za proširenja
| PCI Express x1 (gen. 3.x) slotovi | 1 |
|---|---|
| PCI Express x16 (Gen 4.x) slotovi | 2 |
| PCI Express x16 (Gen 5.x) slotovi | 1 |
| Broj M.2 (M) slotova | 4 |
Težina i dimenzije
| Širina | 243,8 mm |
|---|---|
| Dubina | 304,8 mm |
