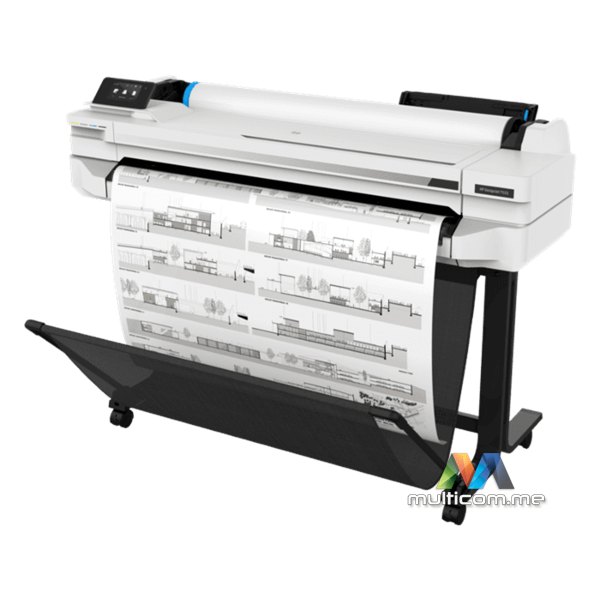

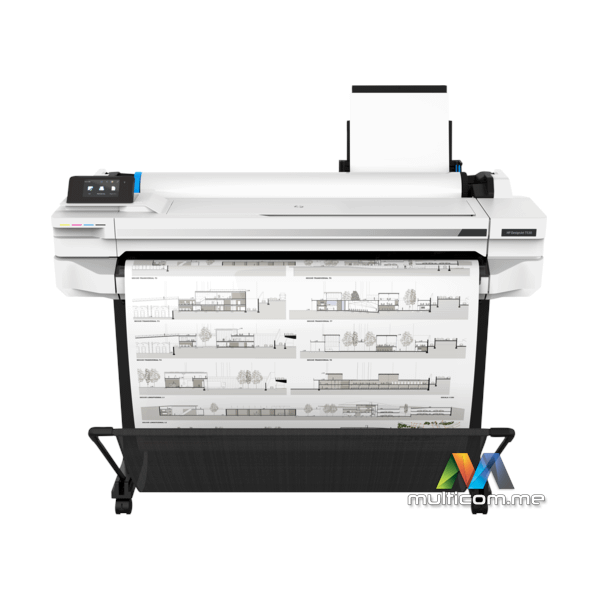

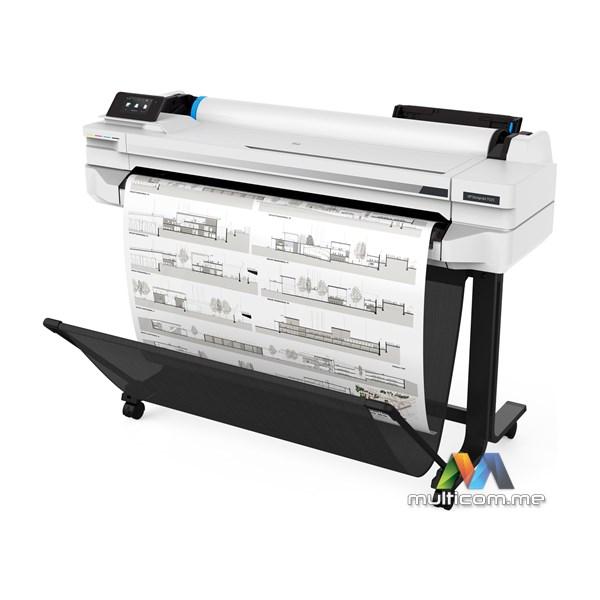

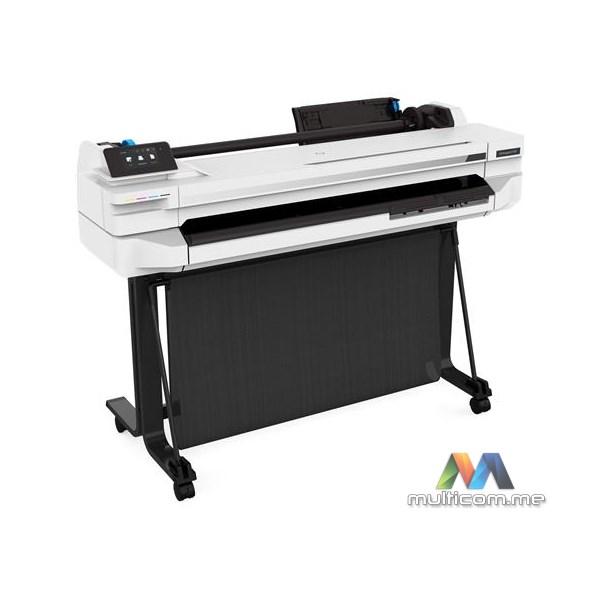

HP 5ZY61A Ploter

Print

Print speed T525: 35 sec/page on A1, 70 A1 prints per hour

T530 24-in: 30 sec/page on A1, 76 A1 prints per hour

T530 36-in: 27 sec/page on A1, 79 A1 prints per hour

Print resolution Up to 2400 x 1200 optimised dpi

Technology HP Thermal Inkjet

Margins Roll: 5x5x5x5 mm (0.2x0.2x0.2x0.2 in)

Sheet: 5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in)

Ink types Dye-based (C, M, Y); pigment-based (K)

",serif"="">

Media

Handling Sheet feed, roll feed, input tray, automatic horizontal cutter

Sheet size 24-in:

Input tray: 210 x 279 to 330 x 482 mm ( 8.3 x 11 to 13 x 19 in)

Manual feed: 330 x 482 to 610 x 1897 mm (13 x 19 to 24 x 74.7 in)

36-in:

Input tray: 210 x 279 to 330 x 482 mm (8.3 x 11 to 13 x 19 in)

Manual feed: 330 x 482 to 914 x 1897 mm (13 x 19 to 36 x 74.7 in)

Roll size 24 in: 279 to 610 mm (11 to 24 in) rolls

36 in: 279 to 914 mm (11 to 36 in)

Standard sheets 24-in:

Input tray: A4, A3

Manual feed: A2, A1

36-in:

Input tray: A4, A3

Manual feed: A2, A1, A0

Grammage 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray)

",serif"="">

Memory 1 GB;

Hard disk None

Connectivity

Interfaces Fast Ethernet (100Base-T), Hi-Speed USB 2.0, Wi-Fi

Print languages (standard) HP-GL/2, HP-RTL, JPEG, CALS G4

Printing paths Windows printer drivers, HP Print Service Plugin for Android, HP Print for Chrome for Chrome OS

",serif"="">

Dimensions (w x d x h)

Printer 24-in: 987 x 530 x 932 mm (38.9 x 20.9 x 36.7 in)

36-in: 1292 x 530 x 932 mm (50.9 x 20.9 x 36.7 in)

Shipping 24-in: 1090 x 570 x 480 mm (42.9 x 22.4 x 18.9 in)

36-in: 1395 x 570 x 480 mm (54.9 x 22.4 x 18.9 in)

Weight

Printer 24-in: 26 kg (57.3 lb)

36-in: 30.5 kg (67.2 lb)

Shipping 24-in: 48.5 kg (106.9 lb)

36-in: 58 kg (127.9 lb)

What's in the box
HP DesignJet T500 series printer, printer stand, printhead, introductory ink cartridges, quick reference guide,

setup poster, power cord

HP Software and

solutions

HP Click, HP DesignJet Utility for Windows, HP Smart app, HP Poster Web app

",serif"="">

Original HP printing supplies

C1Q10A HP 711 DesignJet Printhead Replacement Kit

P2V31A HP 711 2-pack 80-ml Black DesignJet Ink Cartridges

P2V32A HP 711 3-pack 29-ml Cyan/Magenta/Yellow Ink Cartridges
