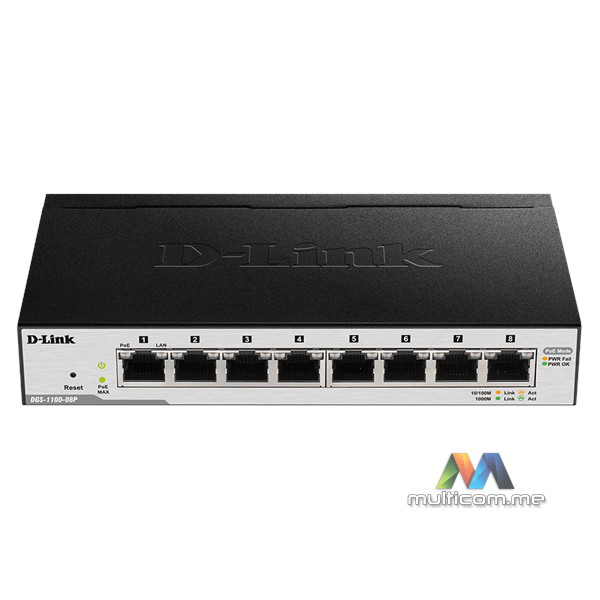

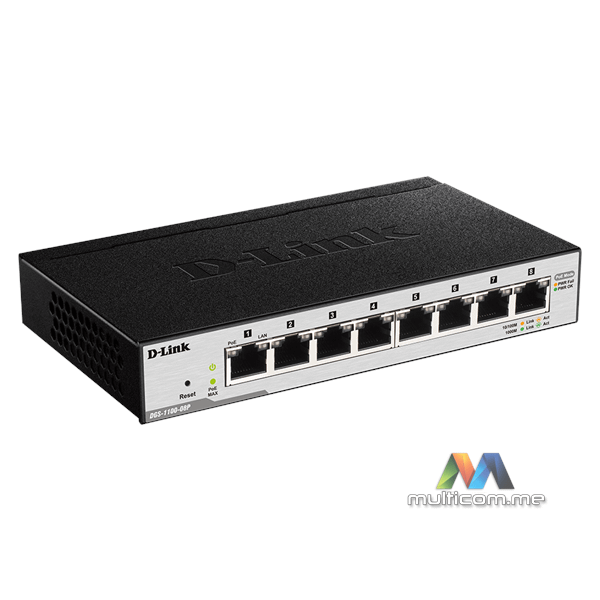

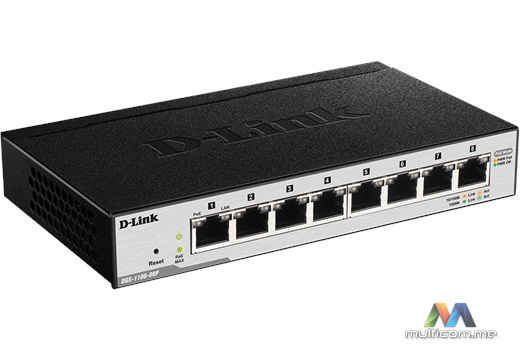

DLink DGS-1100-08P Switch

The DGS-1100 Series Gigabit Smart Managed Switches consists of:

• DGS-1100-08: 8-Port Gigabit Smart Managed Switch (fanless)

• DGS-1100-08P: 8-Port Gigabit PoE Smart Managed Switch (8 x PoE ports, fanless)

• DGS-1100-10MP: 10-Port Gigabit Max PoE Smart Managed Switch including 2 SFP ports (8 x PoE ports, fan)

• DGS-1100-16: 16-Port Gigabit Smart Managed Switch (fanless)

• DGS-1100-18: 18-Port Gigabit Smart Managed Switch including 2 SFP ports (fanless)

• DGS-1100-24: 24-Port Gigabit Smart Managed Switch (fanless)

• DGS-1100-24P: 24-Port Gigabit PoE Smart Managed Switch (12 x PoE ports, fan)

• DGS-1100-26: 26-Port Gigabit Smart Managed Switch including 2 SFP ports (fanless)

• DGS-1100-26MP: 26-Port Gigabit Max PoE Smart Managed Switch including 2 comb ports (24 x PoE ports, fan)

Features

Physical

• Various selection of port counts, with or without PoE and fiber support

• Fanless design for silent operation (non-PoE models only)

Green Technology

• Link Status detection

• IEEE 802.3az compliant

• Time-based PoE (PoE models excluding DGS-1100-08P)

Advanced Features

• IGMP Snooping

• Bandwidth Control

• IEEE 802.1Q VLAN traffic segregation

• Port-based VLAN

• IEEE 802.1p QoS

• Surveillance VLAN

• Voice VLAN

Management Features

• Client-based utility or web-based GUI

• Built-in SNMP MIB1

• Surveillance Features (MP Models)

• Full PoE budget and ultra-high power ports

• Per-port 6 kV surge protection

Technical Specifications

Interface

Number of 10/100/1000BASE-TX ports

• DGS-1100-08 - 8 ports

• DGS-1100-08P - 8 ports

• DGS-1100-10MP - 10 ports

• DGS-1100-16 - 16 ports

• DGS-1100-18 - 16 ports

• DGS-1100-24 - 24 ports

• DGS-1100-24P - 24 ports

• DGS-1100-26 - 24 ports

• DGS-1100-26MP - 24 ports

Number of SFP ports

• DGS-1100-10MP - 2 ports

• DGS-1100-18 - 2 ports

• DGS-1100-26 - 2 ports

Number of combo ports

• DGS-1100-26MP - 2 ports

PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)

• DGS-1100-08P (802.3af/8 ports/64W)

• DGS-1100-10MP (802.3af/802.3at/8 ports/130W)

• DGS-1100-24P (802.3af/802.3at/12 ports/100W)

• DGS-1100-26MP (802.3af/802.3at/24 ports/370W)

Performance

Switch Capacity

• DGS-1100-08 - 16 Gbps

• DGS-1100-08P - 16 Gbps

• DGS-1100-10MP - 20 Gbps

• DGS-1100-16 - 32 Gbps

• DGS-1100-18 - 36 Gbps

• DGS-1100-24 - 48 Gbps

• DGS-1100-24P - 48 Gbps

• DGS-1100-26 - 52 Gbps

• DGS-1100-26MP - 52 Gbps

Maximum Forwarding Rate

• DGS-1100-08 - 11.9 Mpps

• DGS-1100-08P - 11.9 Mpps

• DGS-1100-10MP - 14.88 Mpps

• DGS-1100-16 - 23.81 Mpps

• DGS-1100-18 - 26.79 Mpps

• DGS-1100-24 - 35.71 Mpps

• DGS-1100-24P - 35.71 Mpps

• DGS-1100-26 - 38.69 Mpps

• DGS-1100-26MP - 38.69 Mpps

MAC Address Table Size

• DGS-1100-08 - 8K

• DGS-1100-08P - 8K

• DGS-1100-10MP - 16K

• DGS-1100-16 - 8K

• DGS-1100-18 - 16K

• DGS-1100-24 - 8K

• DGS-1100-24P - 8K

• DGS-1100-26 - 16K

• DGS-1100-26MP - 16K

Packet Buffer

• DGS-1100-08 - 2 Mbits

• DGS-1100-08P - 2Mbits

• DGS-1100-10MP - 1.5 Mbits

• DGS-1100-16 - 512 Kbits

• DGS-1100-18 - 1.5 Mbits

• DGS-1100-24 - 512 Kbits

• DGS-1100-24P - 512 Kbits

• DGS-1100-26 - 1.5 Mbits

• DGS-1100-26MP - 1.5 Mbits

Flash Memory

• DGS-1100-08 - 2 Mbytes

• DGS-1100-08P - 2 Mbytes

• DGS-1100-10MP - 16 Mbytes

• DGS-1100-16 - 8 Mbytes

• DGS-1100-18 - 8 Mbytes

• DGS-1100-24 - 8 Mbytes

• DGS-1100-24P - 8Mbytes

• DGS-1100-26 - 8 Mbytes

• DGS-1100-26MP - 16Mbytes

Diagnostic LED Indicators

Power (Per Device)

• Yes

Link/Activity/Speed (Per Port)

• Yes

Physical & Environmental

Power Consumption (Maximum)

• DGS-1100-08 - 4.89W

• DGS-1100-08P -78.8W (PoE on)

• DGS-1100-10MP - 141.4W (PoE on)

• DGS-1100-16 - 9.31W

• DGS-1100-18 - 14.88W

• DGS-1100-24 - 13.94W

• DGS-1100-24P - 128.32W (PoE on)

• DGS-1100-26 - 19.04W

• DGS-1100-26MP - 387W (PoE on)

Power Input

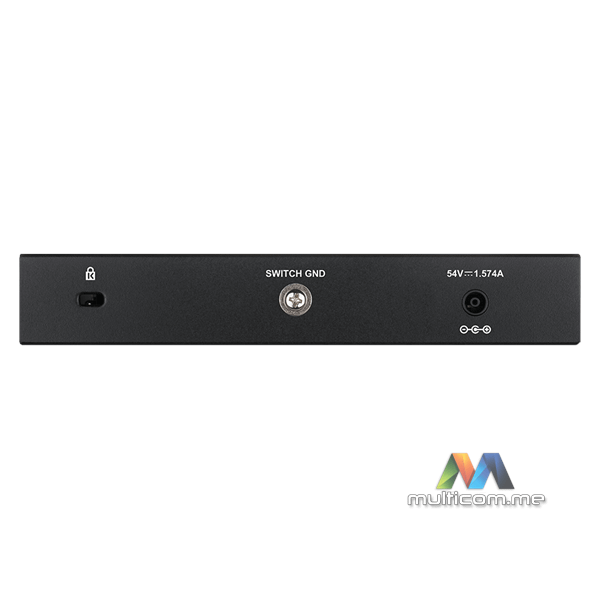

• DGS-1100-08/08P - 100 to 240 VAC, 50 to 60Hz external power supply

• DGS-1100-10MP/16/18/24/26/26MP - 100 to 240 VAC, 50 to 60Hz internal universal power supply

Dimensions (W x D x H)

• DGS-1100-08 - 171 x 98 x 28 mm

• DGS-1100-08P - 190 x 120 x 38 mm

• DGS-1100-10MP - 280 x 180 x 44 mm

• DGS-1100-16/18/24/26 - 280 x 180 x 44mm

• DGS-1100-24P - 280 x 230 x 44 mm

• DGS-1100-26MP - 440 x 290 x 44 mm

Weight

• DGS-1100-08 - 0.42 kg

• DGS-1100-08P - 0.706 kg

• DGS-1100-10MP - 1.83 kg

• DGS-1100-16 - 1.53 kg

• DGS-1100-18 - 1.56 kg

• DGS-1100-24 - 1.63 kg

• DGS-1100-24P - 2.15 kg

• DGS-1100-26 - 1.66 kg

• DGS-1100-26MP - 3.81 kg

Ventilation

• DGS-1100-08/08P/16/18/24/26 - fanless

• DGS-1100-10MP/24P - 1 fan

• DGS-1100-26MP - 2 fans

Heat Dissipation

• DGS-1100-08 - 16.68 BTU per hour

• DGS-1100-08P - 268.87 BTU per hour

• DGS-1100-10MP - 570.51 BTU per hour

• DGS-1100-16 - 31.77 BTU per hour

• DGS-1100-18 - 50.77 BTU per hour

• DGS-1100-24 - 47.57 BTU per hour

• DGS-1100-24P - 437.85 BTU per hour

• DGS-1100-26 - 64.97 BTU per hour

• DGS-1100-26MP - 1470.46 BTU per hour

MTBF

• DGS-1100-08 - 503,585 hours

• DGS-1100-08P - 708,219 hours

• DGS-1100-10MP - 291,575 hours

• DGS-1100-16 - 2,827,541 hours

• DGS-1100-18 - 2,671,256 hours

• DGS-1100-24 - 2,406,109 hours

• DGS-1100-24P - 563,292 hours

• DGS-1100-26 - 2,277,645 hours

• DGS-1100-26MP - 269,291 hours

Temperature

• DGS-1100-08/08P - operating: 0° to 40°C (32° to 104°F), storage: -10° to 70°C (14° to 158°F )

• DGS-1100-10MP/16/18/24/24P/26/26MP - operating: -5° to 50°C (23° to 122°F), storage: -40° to 70°C (-40° to 158°F )

Humidity

• DGS-1100-08/08P - operating: 10% ~ 95% Non-condensing, storage: 5% ~ 95% Non-condensing

• DGS-1100-10MP/16/18/24/24P/26/26MP - operating: 0% ~ 95% Non-condensing, storage: 0% ~ 95% Non-condensing

EMI/EMC

• DGS-1100-08/08P - FCC Class A, CE Class A, VCCI Class A, C-Tick

• DGS-1100-16/18/24/24P/26 - FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI, CCC

• DGS-1100-10MP/26MP - FCC/IC, CE, VCCI, RCM, BSMI

Safety

• DGS-1100-08/08P - cUL, CE LVD

• DGS-1100-16/18/24/24P/26 - cUL, CE LVD, CB, BSMI, CCC

• DGS-1100-10MP/26MP - cUL, UL, GS, CB

Software Features (DGS-1100-10MP/16/18/24/24P/26P/26MP)

VLAN

• Port-based VLAN

• 802.1Q tagged VLAN

• Auto Surveillance VLAN

• Voice VLAN

• Management VLAN

• Asymmetric VLAN

• VLAN Group

• • Supports 128 static VLAN groups

• • Max. 4094 VIDs

L2 Features

• Flow Control

• • 802.3x Flow Control

• • HOL Blocking Prevention

• Jumbo Frames up to 9216 Bytes

• IGMP Snooping

• • IGMP v1/v2/v3 awareness Snooping

• • Supports 64 Groups

• • IGMP Snooping Querier

• 802.3ad Link Aggregation:

• • DGS-1100-16: Support max 8 groups per device and 8 ports per group

• • DGS-1100-10MP: Support 5 groups per device and 8 ports per group

• • DGS-1100-18: Support max 9 groups per device and 8 ports per group

• • DGS-1100-24P: Support max 12 groups per device and 8 ports per group

• • DGS-1100-26: Support max 13 groups per device and 8 ports per group

• • DGS-1100-26MP: Support 13 groups per device and 8 ports per group

• Loopback Detection Ethernet Ring Protection Switching2

• • G.8032 ERPS

• Cable Diagnostics

• LLDP

• Port Mirroring

• • One-to-One

• • Many-to-One

• Statistics

• • Tx Ok

• • Tx Error

• • Rx Ok

• • Rx Error

• Spanning Tree Protocol

• • 802.1D STP

• • 802.1w RSTP

Quality of Service (QoS)

• 802.1p Quality of Service

• 4 queues per port

• Queue Handling

• • Strict

• • Weighted Round Robin (WRR)

• Port-based Bandwidth Control (Rate Limiting)

• • Ingress: 8 Kbps

• • Egress: 64 Kbps

Security

• D-Link Safeguard

• Traffic Segmentation

• Broadcast/Multicast/Unknown Unicast Storm Control

• DoS Attack Prevention

• SSL

Management

• Web-based GUI (Supports IPv4/IPv6)

• D-Link Network Assistant Utility

Green Technology

• Power Saving by

• • Link Status

• • LED Shut-Off

• • Port Shut-Off

• • System Hibernation

• Compliant with IEEE 802.3az Energy Efficient Ethernet

MIB/RFC Standards

• RFC 768 UDP

• RFC 791 IP

• RFC 792 ICMP

• RFC 793 TCP

• RFC 826 ARP

• RFC 1213 MIB II

• RFC1493 Bridage MIB

• RFC1907 SNMPv2 MIB

• RFC1215 MIB Traps Convention

• RFC2233 Interface Group MIB

• RFC2665 Ether-like MIB

• 802.1p MIB RFC4363

• ZoneDefense MIB

• Private MIB

• RFC 951 BootP client

• RFC 1542 BootP/DHCP client

• RFC 4363 802.1p

• RFC 2236 IGMP Snooping

Software Features (DGS-1100-08/08P)

VLAN

• Port-based VLAN

• 802.1Q tagged VLAN

• Surveillance VLAN

• Voice VLAN

• Management VLAN

• VLAN Group

• • Supports 32 static VLAN groups

• • Max. 4094 VIDs

L2 Features

• Flow Control

• • 802.3x Flow Control

• • HOL Blocking Prevention

• Jumbo Frames up to 9216 Bytes

• IGMP Snooping

• • IGMP v1/v2 Snooping

• • Supports 32 Groups

• Static Trunk

• • 2 groups, 2-4 ports per group

• Loopback Detection

• Cable Diagnostics

• Port Mirroring

• • One-to-One

• Statistics

• • Tx Ok

• • Tx Error

• • Rx Ok

• • Rx Error

Quality of Service (QoS)

• 802.1p Quality of Service

• 4 queues per port

• Queue Handling

• • Strict

• • Weighted Round Robin (WRR)

• Bandwidth Control

• • Port-based (Ingress/Egress, min. granularity 8 Kb/s)

Security

• Static MAC Address

• • up to 32 entries

• Broadcast/Multicast/Unknown Unicast Storm Control

Management

• Web-based GUI (Supports IPv4)

• Client-based Utility (SmartConsole Utility)

D-Link Green

• Power Saving by

• • Link Status

• • Cable Length

• Compliant with IEEE 802.3az Energy Efficient Ethernet

• Compliant with RoHS 6

RFC Standard List

• RFC 768 UDP

• RFC 791 IP

• RFC 792 ICMP

• RFC 793 TCP

• RFC 826 ARP

• RFC 951 BootP client

• RFC 1542 BootP/DHCP client

• RFC 1945 HTTP/1.0

• RFC 2647 802.1p

• RFC 2236, 4451 IGMP Snooping

The DGS-1100 Series Gigabit Smart Managed Switches consists of:

• DGS-1100-08: 8-Port Gigabit Smart Managed Switch (fanless)

• DGS-1100-08P: 8-Port Gigabit PoE Smart Managed Switch (8 x PoE ports, fanless)

• DGS-1100-10MP: 10-Port Gigabit Max PoE Smart Managed Switch including 2 SFP ports (8 x PoE ports, fan)

• DGS-1100-16: 16-Port Gigabit Smart Managed Switch (fanless)

• DGS-1100-18: 18-Port Gigabit Smart Managed Switch including 2 SFP ports (fanless)

• DGS-1100-24: 24-Port Gigabit Smart Managed Switch (fanless)

• DGS-1100-24P: 24-Port Gigabit PoE Smart Managed Switch (12 x PoE ports, fan)

• DGS-1100-26: 26-Port Gigabit Smart Managed Switch including 2 SFP ports (fanless)

• DGS-1100-26MP: 26-Port Gigabit Max PoE Smart Managed Switch including 2 comb ports (24 x PoE ports, fan)

Features

Physical

• Various selection of port counts, with or without PoE and fiber support

• Fanless design for silent operation (non-PoE models only)

Green Technology

• Link Status detection

• IEEE 802.3az compliant

• Time-based PoE (PoE models excluding DGS-1100-08P)

Advanced Features

• IGMP Snooping

• Bandwidth Control

• IEEE 802.1Q VLAN traffic segregation

• Port-based VLAN

• IEEE 802.1p QoS

• Surveillance VLAN

• Voice VLAN

Management Features

• Client-based utility or web-based GUI

• Built-in SNMP MIB1

• Surveillance Features (MP Models)

• Full PoE budget and ultra-high power ports

• Per-port 6 kV surge protection

Technical Specifications

Interface

Number of 10/100/1000BASE-TX ports

• DGS-1100-08 - 8 ports

• DGS-1100-08P - 8 ports

• DGS-1100-10MP - 10 ports

• DGS-1100-16 - 16 ports

• DGS-1100-18 - 16 ports

• DGS-1100-24 - 24 ports

• DGS-1100-24P - 24 ports

• DGS-1100-26 - 24 ports

• DGS-1100-26MP - 24 ports

Number of SFP ports

• DGS-1100-10MP - 2 ports

• DGS-1100-18 - 2 ports

• DGS-1100-26 - 2 ports

Number of combo ports

• DGS-1100-26MP - 2 ports

PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)

• DGS-1100-08P (802.3af/8 ports/64W)

• DGS-1100-10MP (802.3af/802.3at/8 ports/130W)

• DGS-1100-24P (802.3af/802.3at/12 ports/100W)

• DGS-1100-26MP (802.3af/802.3at/24 ports/370W)

Performance

Switch Capacity

• DGS-1100-08 - 16 Gbps

• DGS-1100-08P - 16 Gbps

• DGS-1100-10MP - 20 Gbps

• DGS-1100-16 - 32 Gbps

• DGS-1100-18 - 36 Gbps

• DGS-1100-24 - 48 Gbps

• DGS-1100-24P - 48 Gbps

• DGS-1100-26 - 52 Gbps

• DGS-1100-26MP - 52 Gbps

Maximum Forwarding Rate

• DGS-1100-08 - 11.9 Mpps

• DGS-1100-08P - 11.9 Mpps

• DGS-1100-10MP - 14.88 Mpps

• DGS-1100-16 - 23.81 Mpps

• DGS-1100-18 - 26.79 Mpps

• DGS-1100-24 - 35.71 Mpps

• DGS-1100-24P - 35.71 Mpps

• DGS-1100-26 - 38.69 Mpps

• DGS-1100-26MP - 38.69 Mpps

MAC Address Table Size

• DGS-1100-08 - 8K

• DGS-1100-08P - 8K

• DGS-1100-10MP - 16K

• DGS-1100-16 - 8K

• DGS-1100-18 - 16K

• DGS-1100-24 - 8K

• DGS-1100-24P - 8K

• DGS-1100-26 - 16K

• DGS-1100-26MP - 16K

Packet Buffer

• DGS-1100-08 - 2 Mbits

• DGS-1100-08P - 2Mbits

• DGS-1100-10MP - 1.5 Mbits

• DGS-1100-16 - 512 Kbits

• DGS-1100-18 - 1.5 Mbits

• DGS-1100-24 - 512 Kbits

• DGS-1100-24P - 512 Kbits

• DGS-1100-26 - 1.5 Mbits

• DGS-1100-26MP - 1.5 Mbits

Flash Memory

• DGS-1100-08 - 2 Mbytes

• DGS-1100-08P - 2 Mbytes

• DGS-1100-10MP - 16 Mbytes

• DGS-1100-16 - 8 Mbytes

• DGS-1100-18 - 8 Mbytes

• DGS-1100-24 - 8 Mbytes

• DGS-1100-24P - 8Mbytes

• DGS-1100-26 - 8 Mbytes

• DGS-1100-26MP - 16Mbytes

Diagnostic LED Indicators

Power (Per Device)

• Yes

Link/Activity/Speed (Per Port)

• Yes

Physical & Environmental

Power Consumption (Maximum)

• DGS-1100-08 - 4.89W

• DGS-1100-08P -78.8W (PoE on)

• DGS-1100-10MP - 141.4W (PoE on)

• DGS-1100-16 - 9.31W

• DGS-1100-18 - 14.88W

• DGS-1100-24 - 13.94W

• DGS-1100-24P - 128.32W (PoE on)

• DGS-1100-26 - 19.04W

• DGS-1100-26MP - 387W (PoE on)

Power Input

• DGS-1100-08/08P - 100 to 240 VAC, 50 to 60Hz external power supply

• DGS-1100-10MP/16/18/24/26/26MP - 100 to 240 VAC, 50 to 60Hz internal universal power supply

Dimensions (W x D x H)

• DGS-1100-08 - 171 x 98 x 28 mm

• DGS-1100-08P - 190 x 120 x 38 mm

• DGS-1100-10MP - 280 x 180 x 44 mm

• DGS-1100-16/18/24/26 - 280 x 180 x 44mm

• DGS-1100-24P - 280 x 230 x 44 mm

• DGS-1100-26MP - 440 x 290 x 44 mm

Weight

• DGS-1100-08 - 0.42 kg

• DGS-1100-08P - 0.706 kg

• DGS-1100-10MP - 1.83 kg

• DGS-1100-16 - 1.53 kg

• DGS-1100-18 - 1.56 kg

• DGS-1100-24 - 1.63 kg

• DGS-1100-24P - 2.15 kg

• DGS-1100-26 - 1.66 kg

• DGS-1100-26MP - 3.81 kg

Ventilation

• DGS-1100-08/08P/16/18/24/26 - fanless

• DGS-1100-10MP/24P - 1 fan

• DGS-1100-26MP - 2 fans

Heat Dissipation

• DGS-1100-08 - 16.68 BTU per hour

• DGS-1100-08P - 268.87 BTU per hour

• DGS-1100-10MP - 570.51 BTU per hour

• DGS-1100-16 - 31.77 BTU per hour

• DGS-1100-18 - 50.77 BTU per hour

• DGS-1100-24 - 47.57 BTU per hour

• DGS-1100-24P - 437.85 BTU per hour

• DGS-1100-26 - 64.97 BTU per hour

• DGS-1100-26MP - 1470.46 BTU per hour

MTBF

• DGS-1100-08 - 503,585 hours

• DGS-1100-08P - 708,219 hours

• DGS-1100-10MP - 291,575 hours

• DGS-1100-16 - 2,827,541 hours

• DGS-1100-18 - 2,671,256 hours

• DGS-1100-24 - 2,406,109 hours

• DGS-1100-24P - 563,292 hours

• DGS-1100-26 - 2,277,645 hours

• DGS-1100-26MP - 269,291 hours

Temperature

• DGS-1100-08/08P - operating: 0° to 40°C (32° to 104°F), storage: -10° to 70°C (14° to 158°F )

• DGS-1100-10MP/16/18/24/24P/26/26MP - operating: -5° to 50°C (23° to 122°F), storage: -40° to 70°C (-40° to 158°F )

Humidity

• DGS-1100-08/08P - operating: 10% ~ 95% Non-condensing, storage: 5% ~ 95% Non-condensing

• DGS-1100-10MP/16/18/24/24P/26/26MP - operating: 0% ~ 95% Non-condensing, storage: 0% ~ 95% Non-condensing

EMI/EMC

• DGS-1100-08/08P - FCC Class A, CE Class A, VCCI Class A, C-Tick

• DGS-1100-16/18/24/24P/26 - FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI, CCC

• DGS-1100-10MP/26MP - FCC/IC, CE, VCCI, RCM, BSMI

Safety

• DGS-1100-08/08P - cUL, CE LVD

• DGS-1100-16/18/24/24P/26 - cUL, CE LVD, CB, BSMI, CCC

• DGS-1100-10MP/26MP - cUL, UL, GS, CB

Software Features (DGS-1100-10MP/16/18/24/24P/26P/26MP)

VLAN

• Port-based VLAN

• 802.1Q tagged VLAN

• Auto Surveillance VLAN

• Voice VLAN

• Management VLAN

• Asymmetric VLAN

• VLAN Group

• • Supports 128 static VLAN groups

• • Max. 4094 VIDs

L2 Features

• Flow Control

• • 802.3x Flow Control

• • HOL Blocking Prevention

• Jumbo Frames up to 9216 Bytes

• IGMP Snooping

• • IGMP v1/v2/v3 awareness Snooping

• • Supports 64 Groups

• • IGMP Snooping Querier

• 802.3ad Link Aggregation:

• • DGS-1100-16: Support max 8 groups per device and 8 ports per group

• • DGS-1100-10MP: Support 5 groups per device and 8 ports per group

• • DGS-1100-18: Support max 9 groups per device and 8 ports per group

• • DGS-1100-24P: Support max 12 groups per device and 8 ports per group

• • DGS-1100-26: Support max 13 groups per device and 8 ports per group

• • DGS-1100-26MP: Support 13 groups per device and 8 ports per group

• Loopback Detection Ethernet Ring Protection Switching2

• • G.8032 ERPS

• Cable Diagnostics

• LLDP

• Port Mirroring

• • One-to-One

• • Many-to-One

• Statistics

• • Tx Ok

• • Tx Error

• • Rx Ok

• • Rx Error

• Spanning Tree Protocol

• • 802.1D STP

• • 802.1w RSTP

Quality of Service (QoS)

• 802.1p Quality of Service

• 4 queues per port

• Queue Handling

• • Strict

• • Weighted Round Robin (WRR)

• Port-based Bandwidth Control (Rate Limiting)

• • Ingress: 8 Kbps

• • Egress: 64 Kbps

Security

• D-Link Safeguard

• Traffic Segmentation

• Broadcast/Multicast/Unknown Unicast Storm Control

• DoS Attack Prevention

• SSL

Management

• Web-based GUI (Supports IPv4/IPv6)

• D-Link Network Assistant Utility

Green Technology

• Power Saving by

• • Link Status

• • LED Shut-Off

• • Port Shut-Off

• • System Hibernation

• Compliant with IEEE 802.3az Energy Efficient Ethernet

MIB/RFC Standards

• RFC 768 UDP

• RFC 791 IP

• RFC 792 ICMP

• RFC 793 TCP

• RFC 826 ARP

• RFC 1213 MIB II

• RFC1493 Bridage MIB

• RFC1907 SNMPv2 MIB

• RFC1215 MIB Traps Convention

• RFC2233 Interface Group MIB

• RFC2665 Ether-like MIB

• 802.1p MIB RFC4363

• ZoneDefense MIB

• Private MIB

• RFC 951 BootP client

• RFC 1542 BootP/DHCP client

• RFC 4363 802.1p

• RFC 2236 IGMP Snooping

Software Features (DGS-1100-08/08P)

VLAN

• Port-based VLAN

• 802.1Q tagged VLAN

• Surveillance VLAN

• Voice VLAN

• Management VLAN

• VLAN Group

• • Supports 32 static VLAN groups

• • Max. 4094 VIDs

L2 Features

• Flow Control

• • 802.3x Flow Control

• • HOL Blocking Prevention

• Jumbo Frames up to 9216 Bytes

• IGMP Snooping

• • IGMP v1/v2 Snooping

• • Supports 32 Groups

• Static Trunk

• • 2 groups, 2-4 ports per group

• Loopback Detection

• Cable Diagnostics

• Port Mirroring

• • One-to-One

• Statistics

• • Tx Ok

• • Tx Error

• • Rx Ok

• • Rx Error

Quality of Service (QoS)

• 802.1p Quality of Service

• 4 queues per port

• Queue Handling

• • Strict

• • Weighted Round Robin (WRR)

• Bandwidth Control

• • Port-based (Ingress/Egress, min. granularity 8 Kb/s)

Security

• Static MAC Address

• • up to 32 entries

• Broadcast/Multicast/Unknown Unicast Storm Control

Management

• Web-based GUI (Supports IPv4)

• Client-based Utility (SmartConsole Utility)

D-Link Green

• Power Saving by

• • Link Status

• • Cable Length

• Compliant with IEEE 802.3az Energy Efficient Ethernet

• Compliant with RoHS 6

RFC Standard List

• RFC 768 UDP

• RFC 791 IP

• RFC 792 ICMP

• RFC 793 TCP

• RFC 826 ARP

• RFC 951 BootP client

• RFC 1542 BootP/DHCP client

• RFC 1945 HTTP/1.0

• RFC 2647 802.1p

• RFC 2236, 4451 IGMP Snooping
