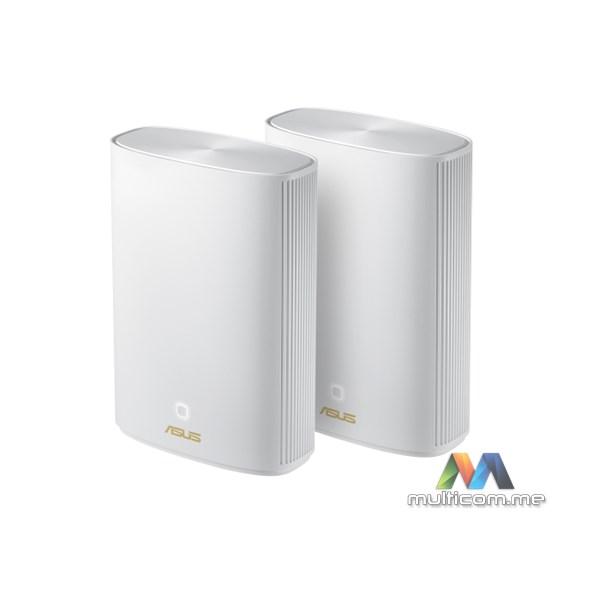

ASUS ZenWiFi AX Hybrid (XP4) 2pack Wireless Router

Model

ASUS ZenWiFi AX Hybrid (XP4)

Model Name

XP4(1-PK)
XP4(2-PK)

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
HomePlug AV2 MIMO
IEEE 1901
IEEE 1905.1
IEEE 802.3ab
IEEE 802.3z

Product Segment

AV1300 HomePlug AV2 MIMO : 1300 Mbps
AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps

AX technology

Yes

Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 4 (802.11n) TurboQAM : up to 400 Mbps
-----------------------------------
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps

Antenna

Internal antenna x 4

Processor

64bit 1.2 GHz quad-core processor

Memory

256 MB Flash
512 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth

Operating Frequency

2.4G Hz / 5 GHz

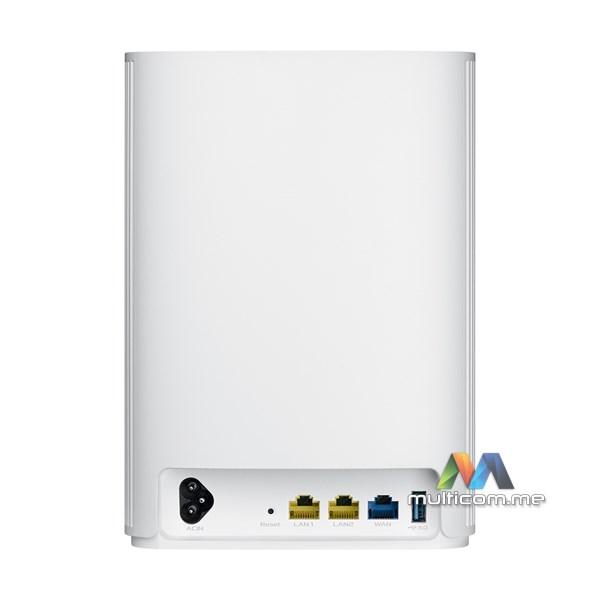

Ports

RJ45 for Gigabit BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 2
USB 3.2 Gen 1 x 1
AC Power Jack with PLC x 1

Button

WPS/PLC Combo Button, Reset Button

LED Indicator

Power & Status Combo LED x 1

Power Supply

AC Input : 110V~240V(50~60Hz)

Package content

‧Router (XP4)
‧RJ45 Ethernet cable
‧Power core
‧Quick start guide
‧Warranty Card

Remark

Content may vary in different regions and packages.

AiMesh

AiMesh
Primary AiMesh router
AiMesh node

Router APP

ASUS Router APP

Alexa

Support Alexa skill

AiProtection

AiProtection Pro
Router Security Assessment
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking

Parental Control

Parental Control
Parental Control Customized Internet schedule
Maximum Parental Control profile : Max 16 rules
Maximum Parental Control content filter rule : Max 16 rules

Traffic Control

Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : Max 32 rules
Traditional QoS
Maximum Traditional QoS rule : Max 32 rules
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Website history

Wireless

IPv6
Wi-Fi Encryption : WPA3-Personal, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPS support
UTF-8 SSID
Guest Network
Maximum Guest Network rule : Max 6 rules
Guest Network Connection time limit
Guest Network Encryption : Max 6 rules
WPS
WiFi MAC address filter
Maximum MAC filters : Max 64 rules
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
Explicit beamforming

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
3G/4G LTE dongle
Android tethering
Port forwarding
Port triggering
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough
Let's Encrypt

LAN

DHCP Server
IGMP snooping
IPTV
Manually assign IP address
Maximum manually assign IP address rule : Max 64 rules

VPN

Instant Guard
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP

USB application

File System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4
HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges

Administration

Operating mode : Wireless router mode,Range extender mode,Access point mode,Media bridge mode
Free OS upgrade
Firewall
Maximum Firewall keyword filter : Max 64 rules
Maximum Firewall network service filter : Max 32 rules
Maximum Firewall URL filter : Max 64 rules
Wake on LAN (WOL)
SSH
Configuration backup and restore
Diagnosis tools
Feedback system
