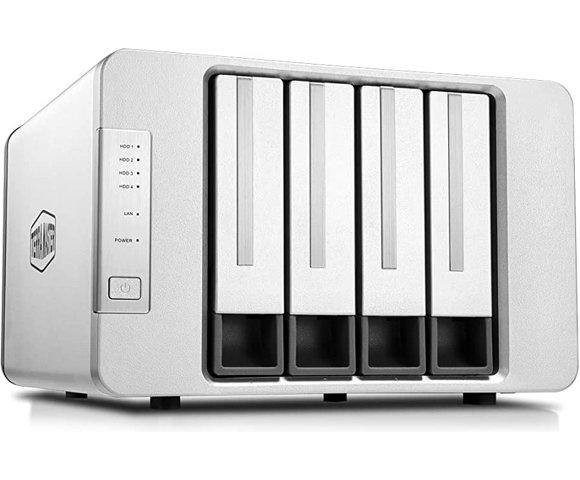

TerraMaster F4-210

Processor

Processor Model

Realtek RTD1296

Processor Architecture

ARM V8 64-bit

Processor Frequency

Quad Core 1.4GHz

Hardware Encryption Engine

√

Memory

System Memory

2GB

Pre-installed Memory module

/

Total Memory Slot Number

/

Maximum Supported Memory

2GB

Note

TerraMaster reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Disk Slot Number

4

Compatible Drive types

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

Maximum Internal Raw Storage Capacity

72TB (18TB x 4) (Capacity may vary by RAID types)

Max Single Volume

108TB

Drive Hot Swap

√

Note

. Hard drive vendors will release their latest models of hard drives, and Maximum internal raw storage capacity may be adjusted accordingly.
. The maximum single volume size is not directly related to the maximum raw capacity.

File System

Internal Drive

EXT4

External Drive

EXT3, EXT4, NTFS, FAT32, HFS+

External Ports

RJ-45 1GbE Network Jack

1

USB 3.0 Port

2

USB 2.0 Port

/

COM

/

HDMI

/

VGA

/

LSI 9207-8i HBA Card

/

PCIe Slots

/

Appearance

Size (H*W*D)

227 x 225x 136 mm

Packaging Size (H*W*D)

300 x 275 x 186 mm

Weight

Net Weight: 2.25Kg  Gross Weight: 3.50Kg

Others

System Fan

80 mm x 80 mm x25mm  2 pcs

Fan Mode

Smart, High speed, Middle speed, Low speed

Noise Level

19.8dB(A)

Power Supply

90W

AC Input Voltage

100V - 240V AC

Current Frequency

50/60 Hz, single frequency

Power Consumption

25.6W

Limited warranty

2 years

Certificate

FCC, CE, CCC, KC

Environment

RoHS, WEEE

Temperature

Working Temperature

0°C  ~ 40°C (32°F ~ 104°F)

Storage Temperature

-20°C ~ 60°C (-5°F ~ 140°F)

Relative Humidity

5% ~ 95% RH

Package Contents

Host unit (x1)

Power cord (x1)

RJ-45 network cable (x1)

Quick Installation Guide (x1)

Limited Warranty Note(x1)

Screws(a few)

Power adapter (x1)

TOS Features

OS Supported

Supported Client OS

Windows OS, Mac OS, Linux OS

Supported Web Browsers

Google Chrome 48, Microsoft Internet Explorer 9, Mozilla Firefox 30,Apple Safari 4.5 or later version; Microsoft Edge is not recommened.

Supported mobile OS

Ios 8.2, Android 6.0 or later version

Storage Management

Supported RAID Types

Single, JBOD, RAID 0, RAID 1, RAID5, RAID 6, RAID 10

Maximum Internal Volume Number

64

Maximum iSCSI Target

32

Maximum iSCSI LUN

32

Volume Expansion with Larger HDDs

RAID 1,RAID5,RAID 6,RAID10

Volume Expansion by Adding a HDD

RAID5

RAID Migration

√

SSD Cache

√

Hot Spare

√

SSD TRIM

/

Hard Drive S.M.A.R.T.

√

Seagate IHM

√

NVRAM write cache(BBU-protected)

/

WORM(Write Once Read Many)

/

Shared Folder Snapshot

/

LUN Snapshot

/

Storage QoS For Shared Folder

/

File Services

File Protocol

SAMBA/AFP/NFS/FTP/WebDAV

Maximum Concurrent SAMBA/AFP/FTP Connections

100

Windows Access Control List (ACL) Integration

√

NFS Kerberos Authentication

√

Account & Shared Folder

Maximum local user's account number

128

Maximum local group number

128

Maximum shared folders number

128

Maximum shared folders syncing tasks

2

Backup

Rsync Server

√

Rsync Backup

√

Schedule Backup

√

USB Device Backup

√

Cloud Sync

√

Time Machine Server

√

File System Gluster

/

Networking

TCP/IP

IPv4

Protocols

CIFS/SAMBA, NFS, FTP, TFTP, HTTPS, SSH, iSCSI, SNMP, SMTP

Link Aggregation

/

DLNA Compliance

√

VPN Client

/

VPN Server

/

Proxy lient

√

Proxy Server

/

UPnP/Bonjour Discovery

√

TNAS.online Remote Access

√

DDNS

√

Access Right Management

Batch users creation

/

Import/Export users

/

User Quota Managerment

√

Local user access control for CIFS/SAMBA and FTP

√

Domain Authentication

Microsoft Active Directory

/

LDAP Client

/

LDAP Server

/

SSO

/

Security

Firewall Protection

√

Account Auto-block Protection

√

AES Shared Folder Encryption

√

Importable SSL certificate

√

Instant Alert via email, SMS, Beep

√

Power Managerment

Automatic Power On After Power Recovery

√

Scheduled Power On/Off

√

Wakeup On LAN

/

UPS Supported

√

Administration

Multi-window, Multi-task System Management

√

Custom Desktop

√

Control Panel

√

Resource Monitor

√

Syslog

√

OS UI Language

English,German, French, Spanish, Italian, Magyar, Chineses,Japanese,Korean

Applications

Application Center

√

Mail Server

√

Web Server

√

Clam Antivirus

√

Download

√

Multi Media Server

√

Docker

√

Plex Media Server

√

Snapshot

/
