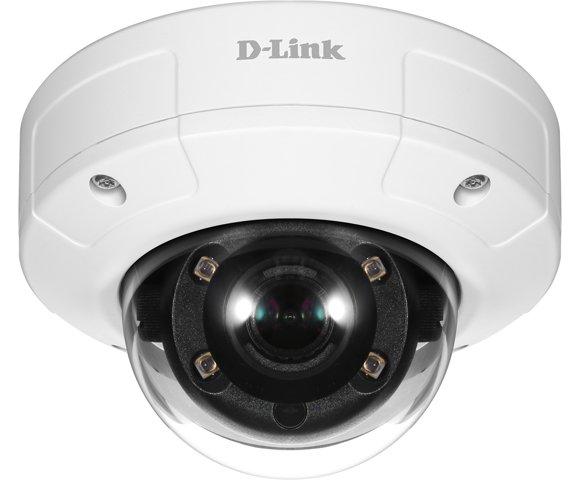

DLink DCS-4602EV

Specification

Functions & Features

Features

• Full HD 1080p, 30 fps

• Day and night with ICR filter and IR LED

• 20m night vision

• Wide Dynamic Range

• 3D Noise Reduction

• Supports Power over Ethernet

• IP66 outdoor certified

• IK-10 vandal-resistance rating

Technical Specifications

Hardware Features

Indoor/Outdoor

• Indoor and outdoor IP66

Vandal-Proof

• Yes (IK10)

Image Sensor

• 1/3” 2-Megapixel progressive scan CMOS

Maximum Video Resolution (Ratio)

• 1920 x 1080 (16:9)

• 1400 x 1080 (other)

Maximum Frame Rate

• Up to 30 fps

Lens

• Fixed 2.8 mm, F1.8

Minimum Illumination (Lux)

• 1.0 lux/F2.0  (colour)

• 0.5 lux/F2.0  (B/W)

• 0 Lux (B&W, IR-LED on)

Infrared-Cut Removable Filter

• Yes

IR Built-in

• 20 m

Wide Dynamic Range (WDR)

• Yes

3D Noise Reduction

• Yes

Angle Of View (H/V/D)

• 96° / 54° / 108°

Gimbal

• 2-Axis

• Vertical: 60° / Horizontal 350°

Privacy Masks

• 3 zones

Wired Connection

• Fast Ethernet (10BASE-T, 100BASE-TX)

• Power over Ethernet (802.3af PoE)

Software Features

Video Format

• H.264

• MJPEG

Multi-Stream

• Yes

ONVIF

• Yes

Digital Zoom

• 10x

Motion Detection

• Yes

Event Recording

• Yes

E-Mail Notification

• Yes

Recording to NAS

• Yes

IPv6 Support

• Yes

Others

Dimensions

• Φ110 × 78mm

Operating Temperature

• -30 ~ 50°C

Operating Humidity

• 20 ~ 80% RH (non-condensing)

Optional Power Input

• DC power adapter (Input: 100-240VAC, 50/60Hz; Output: 12VDC, 1.5A)

Safety

• CE (Class A)

• CE LVD

• FCC (Class A)

• C-Tick
