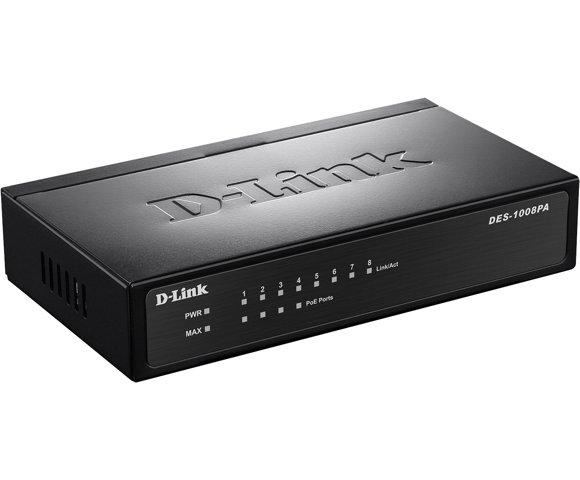

DLink DES-1008PA

Specification

High-Speed Networking

• Eight 10/100 Mbps Fast Ethernet ports

• Full/half-duplex for Ethernet/Fast Ethernet speeds

Power-over-Ethernet

• IEEE 802.3af PoE

• 4 PoE ports, each supporting up to 15.4W

• PoE budget of 52W

Reliability

• IEEE 802.3x flow control

• Store-and-forward switching scheme

• RoHS compliant

Easy Setup

• Plug-and-play installation

• Auto MDI/MDIX crossover for all ports

Convenient Design

• Compact lightweight chassis

• Ports located conveniently at the rear

• Silent operation

Technical Specifications

General

Standards

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

• ANSI/IEEE 802.3 NWay auto-negotiation

• IEEE 802.3x flow control

• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

Switching Fabric

• 1.6 Gbps switching fabric

Data Transfer Rates

• Ethernet

• • 10 Mbps (half duplex)

• • 20 Mbps (full duplex)

• Fast Ethernet

• • 100 Mbps (half duplex)

• • 200 Mbps (full duplex)

Media Interface Exchange

• Auto MDI/MDIX adjustment for all ports

Network Cables

• 10BASE-T:

• • UTP CAT 3/4/5/5e (100 m max.)

• • EIA/TIA-586 100-ohm STP (100 m max.)

• 100BASE-TX

• • UTP CAT 5/5e (100 m max.)

• • EIA/TIA-568 100-ohm STP (100 m max.)

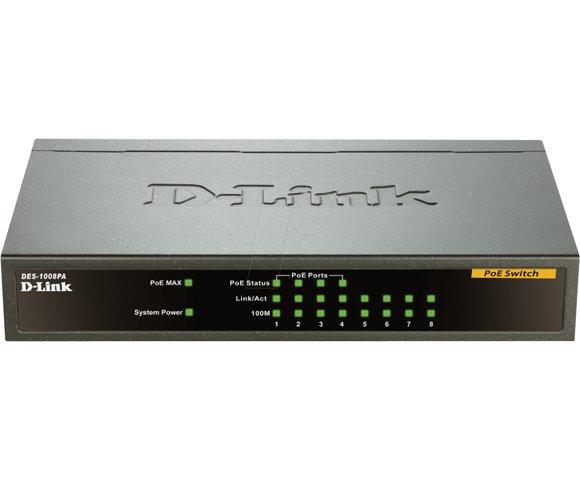

LED Indicators

• Per unit: Power/ PoE Max

• Per port: Activity/ Link and Speed

• Per port: Power / Status

Transmission Method

• Store-and-forward

MAC Address Table

• 1K entries per device

Packet Filtering/Forwarding Rates

• Ethernet: 14,880 pps per port

• Fast Ethernet: 148,800 pps per port

RAM Buffer

• 96 KB per device

Physical

Dimensions

• 6.8” x 3.9” x 1.1” (172mm x 98mm x 27.9mm)

DC Input

• External 48V/1.25A power adapter

Power Consumption

• 63 Watts maximum

PoE

• up to 15.4 Watts per port (ports 1-4 only)

Temperature

• Operating: 0 to 40 ˚C (32 to 104 ˚F)

• Storage: -10 to 70 ˚C (14 to 158 ˚F)

Humidity

• Operating: 5% to 90% RH non-condensing

Certifications

• FCC Class B

• CE

• RoHS
