HP CZ165A

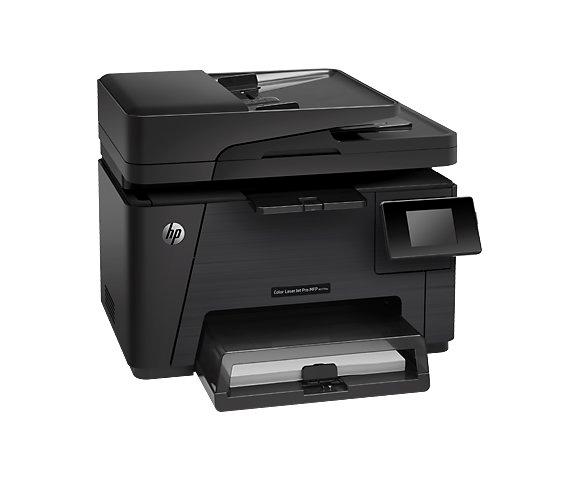

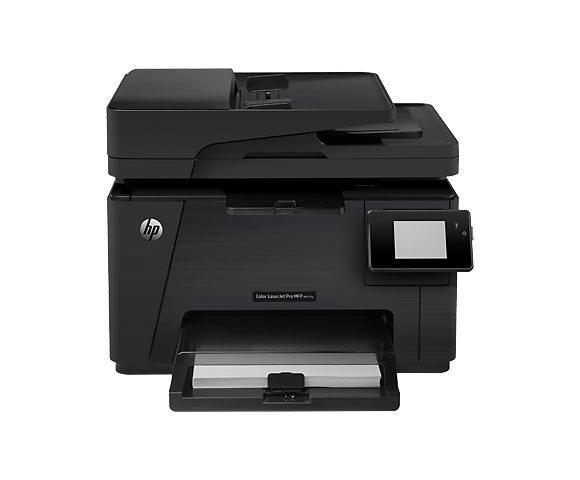

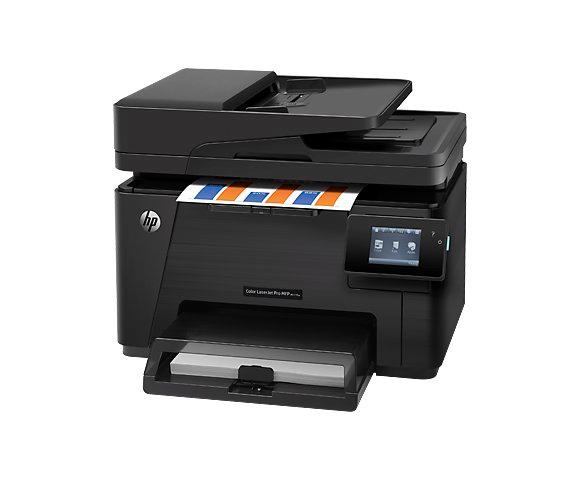

HP Color LaserJet Pro MFP M177fw A4, Print 17/4ppm, Copy, Scan (1200dpi, Scan, Fax, ADF, CPU 600MHz, 128MB, Wireless, network, touch display, monthly up to 20000 pages (CF350A, CF351A, CF352A, CF353A)

Specification

Functions



Functions

• Print, copy, scan, fax

Multitasking supported

Yes

Printing specifications



Print speed black:

Normal: Up to 17 ppm 9
(Measured using ISO/IEC 24734, excludes first set of test documents. For more information seehp.com/products1/ISO/MMDPP/index.html. Exact speed varies depending on the system configuration, software application, driver, and document complexity.)

Print speed color:

Normal:Up to 4 ppm 9
(Measured using ISO/IEC 24734, excludes first set of test documents. For more information seehp.com/products1/ISO/MMDPP/index.html. Exact speed varies depending on the system configuration, software application, driver, and document complexity.)

First page out (ready)

Black: As fast as 16 sec
Color: As fast as 27.5 sec 10
(Exact speed varies depending on the system configuration, software application, driver and document complexity.)

Duty cycle (monthly, A4)

Up to 20,000 pages 11
(Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.)

Recommended monthly page volume

250 to 950 12
(HP recommends that the number of pages per month of imaged output be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.)

Print technology

Laser

Print quality black (best)

Up to 600 x 600 dpi quality (2400 dpi effective output with ImageREt 2400)

Print quality color (best)

Up to 600 x 600 dpi quality (2400 dpi effective output with ImageREt 2400)

Print languages

• PCLm/PCLmS

Display

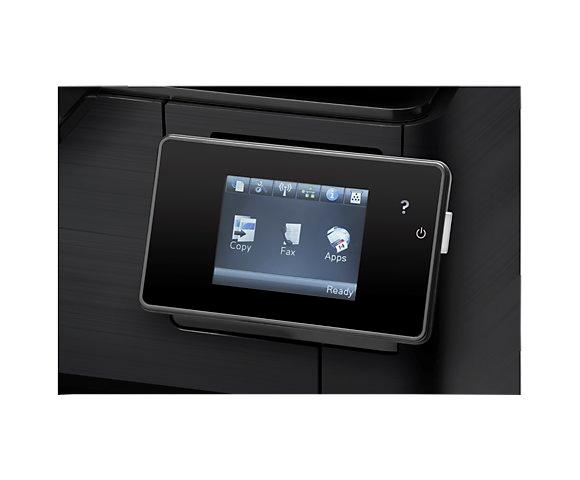

• 3.0-in (7.62-cm) touchscreen CGD (Color Graphics Display)

Processor speed

600 MHz

Automatic paper sensor

No

Replacement cartridges

HP 130A Black LaserJet Toner Cartridge (~1300 yield) CF350A
HP 130A Cyan LaserJet Toner Cartridge (~1000 yield) CF351A
HP 130A Yellow LaserJet Toner Cartridge (~1000 yield) CF352A
HP 130A Magenta LaserJet Toner Cartridge (~1000 yield) CF353A
HP 126A LaserJet Imaging Drum CE314A 3

Connectivity



HP ePrint capability

Yes

Mobile printing capability

HP ePrint, Wireless direct printing, Apple AirPrint™ 5
(May require a firmware upgrade to be compatible, download at hp.com/go/support)

Wireless capability

• Yes, built-in WiFi 802.11b/g/n

Connectivity, standard

• Hi-Speed USB 2.0 port
• built-in Fast Ethernet 10/100Base-TX network port
• Wireless 802.11b/g/n

Network ready

Standard (built-in Fast Ethernet, WiFi 802.11 b/g/n)

Minimum system requirements

• Windows 10 (32-bit/64-bit), Windows 8 (32/64-bit), Windows 7 (32/64-bit), Windows Vista (32/64-bit), Windows XP 32-bit (SP2 or higher)
• hard disk space required (CD and Web Package) 200 MB
• 400 MB hard disk space required
• RAM installed 512 MB CD-ROM/DVD or Internet, USB or Network port



• Mac OSX v 10.6
• PowerPC G4, G5, or Intel® Core™ Processor
• 500 MB available hard disk space
• CD-ROM/DVD-ROM or Internet
• USB or Network port

Compatible operating systems

Full software installs supported on: Windows 10 (32-bit/64-bit), Windows 8 (32-bit/64-bit), Windows 7 (32-bit/64-bit), Windows Vista (32-bit/64-bit), Windows XP (32-bit) (SP2 or higher)
Driver only installs supported on: Windows 2012
Windows Server 2008 (32-bit/64-bit), Windows Server 2008 R2 (x64) (SP1), Windows Server 2008 (Standard Edition), Windows Server 2008 (Enterprise Edition), Windows Server 2003 (32-bit/64-bit) (SP1 or higher), Windows XP (64-bit) (SP2 or higher)
Mac OS X v 10.6.8 or higher
Linux: Please check Linux on-line support: http://www.hplipopensource.com/hplip-web/install.html 15
(Driver only installs supported on: Windows 2012; Windows Server 2008 (32-bit/64-bit), Windows Server 2008 R2 (x64) (SP1), Windows Server 2008 (Standard Edition), Windows Server 2008 (Enterprise Edition), Windows Server 2003 (32-bit/64-bit) (SP1 or higher), Windows XP (64-bit) (SP2 or higher))

Memory specifications



Memory, standard

128 MB

Maximum memory

128 MB

Hard disk

• No

Paper handling



Paper handling input, standard

• 150-sheet input tray

Paper handling output, standard

• 50-sheet face-down bin

Maximum output capacity (sheets)

Up to 50 sheets

Duplex printing

• Manual (driver support provided)

Finished output handling

• Sheetfed

Media sizes supported

• Letter, legal, executive, 4 x 6 in, 5 x 8 in, 8.5 x 13 in, envelopes (No. 10, Monarch)

Media sizes, custom

3 x 5 to 8.5 x 14 in

Media sizes, custom

76 x 127 to 216 x 356 mm

Media types

Paper (bond, brochure, colored, glossy, letterhead, photo, plain, preprinted, prepunched, recycled, rough), postcards, transparencies, labels, envelopes

Media weight, supported

16 to 58 lb (bond)

Media weights, supported ADF

16 to 24 lb
