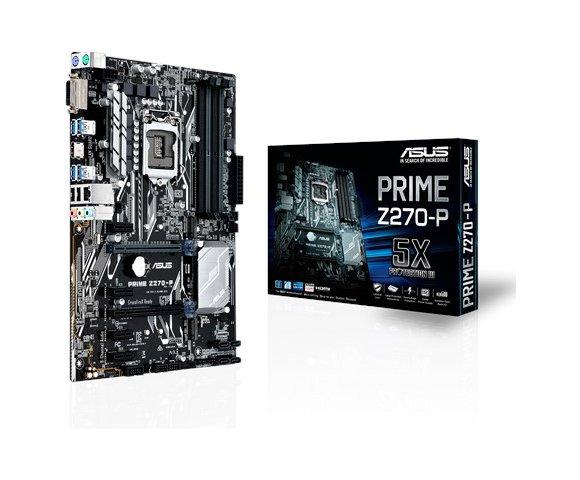

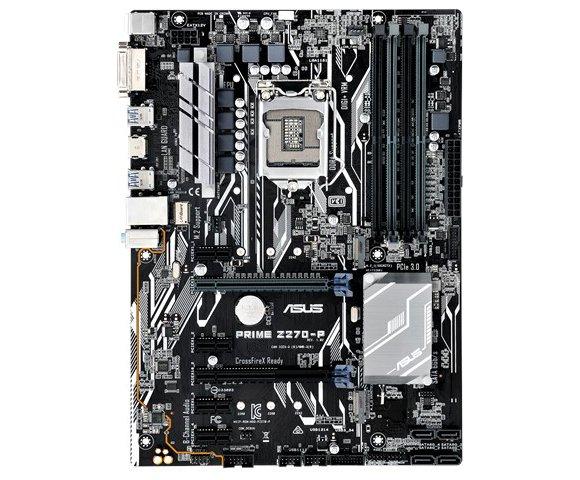

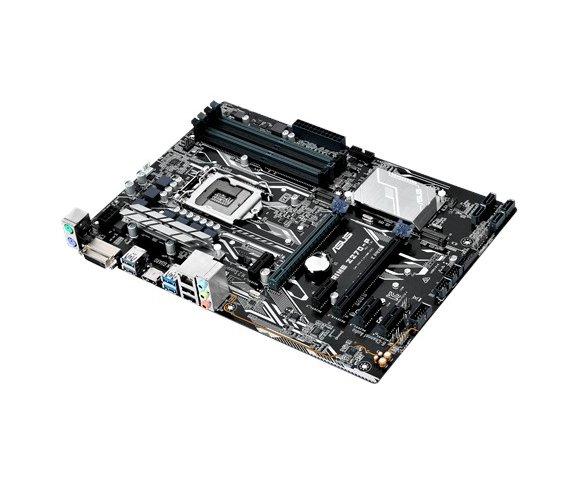

ASUS PRIME Z270-P

Asus Intel MB PRIME Z270-P, DDR4 3866MHz, Kaby Lake, LED lighting, Dual M.2, LGA 1151, USB 3.0

• Maximize your connectivity and speed with integrated Dual M.2, Intel® Optane™ Memory compatibility and USB 3.0 connections
• 5X Protection III Hardware-level safeguards provide component longevity and reliability
• FanXpert 2 Core delivers advanced fan control for dynamic cooling
• Dual Patent-pending SafeSlot Core fortified PCIe slot prevents damage caused by heavyweight GPUs
• On-board 3D-printing mounts for creating unique designs on your customized build

Specification

• CPU
  Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® Z270
• Memory
  4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-D ports
  - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
• Multi-GPU Support
  Supports AMD CrossFireX™ Technology
• Expansion Slots
  1 x PCIe 3.0/2.0 x16 (x16 mode)
  1 x PCIe 3.0/2.0 x16 (max at x4 mode)
  4 x PCIe 3.0/2.0 x1
• Storage
  2 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*1
  4 x SATA 6Gb/s port(s), gray
  Support Raid 0, 1, 5, 10
  Supports Intel® Smart Response Technology*2
  Intel® Optane™ Memory Ready *3
• LAN
  Realtek® RTL8111H
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• USB Ports
  Intel® Z270 Chipset :
  8 x USB 3.0 port(s) (4 at back panel, blue, Type-A, 4 at mid-board)
  Intel® Z270 Chipset :
  6 x USB 2.0 port(s) (2 at back panel, , Type-A, 4 at mid-board)
• Special Features
  ASUS 5X Protection III :
  - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
  - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  - ASUS Overvoltage Protection: World-class circuit-protecting power design
  - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  - ASUS DIGI+ VRM: 7 Phase digital power design
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution & MOS Heatsink
  - ASUS Fan Xpert 2+
  ASUS EZ DIY :
  - ASUS O.C. Tuner
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM
  Overclocking Protection :
  - ASUS C.P.R.(CPU Parameter Recall)
  M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
