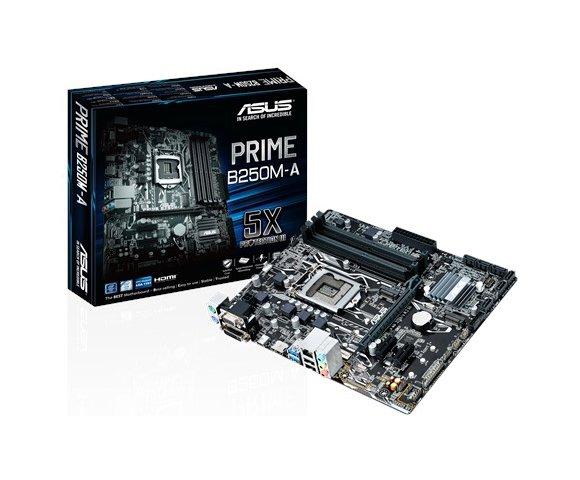

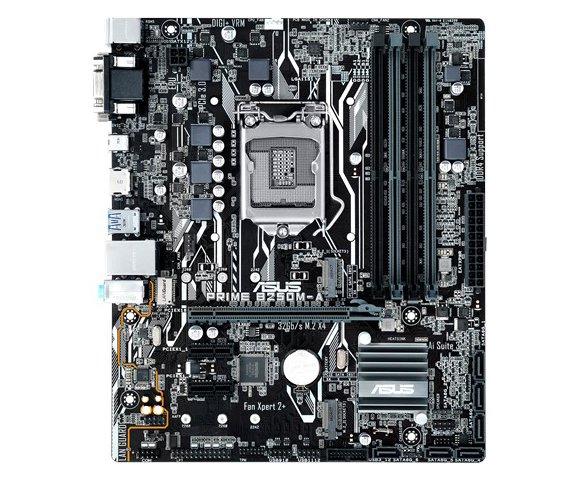

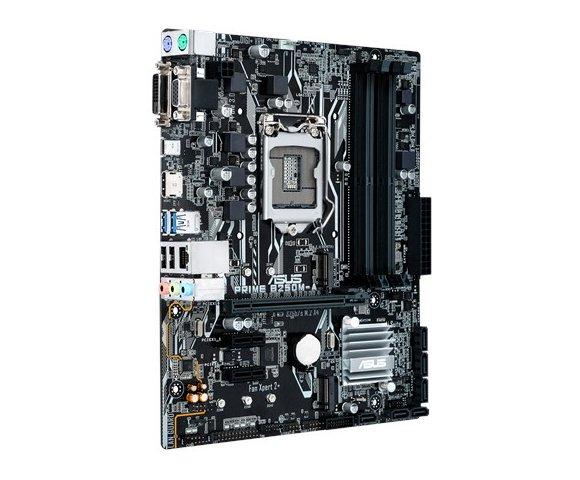

ASUS ASUS PRIME B250M-A

ASUS PRIME B250M-A, 1151, Intel B250, DDR4, Broj utora 4, 2133 MHz, PCIe 3.0 x16 1, PCIe x1 2, SATA3 6, 8-kanalni audio, 1x 10/100/1000 Ethernet, USB 3.0 2, USB 2.0 2, mATX, M.2 1, USB 3.1 1

Specification

• CPU

  Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list

• Chipset

  Intel® B250

• Memory

  4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.
  ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.

• Graphic

  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-D/RGB ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 3 displays simultaneously

• Expansion Slots

  1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
  2 x PCIe 3.0/2.0 x1

• Storage

  Intel® B250 Chipset :
  1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*1
  1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)*2
  Intel® Optane™ Memory Ready *3

• LAN

  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
  ASUS LAN Guard

• Audio

  Realtek® ALC887 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

• USB Ports

  Intel® B250 Chipset :
  1 x USB 5Gb/s port(s) port(s) (1 at back panel, , Type-C, Support 3A power output)
  Intel® B250 Chipset :
  4 x USB 3.0/2.0 port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
  Intel® B250 Chipset :
  6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)

• Special Features

  ASUS 5X Protection III :
  - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
  - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  - ASUS Overvoltage Protection: World-class circuit-protecting power design
  - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  - ASUS DIGI+ VRM: 6 Phase digital power design
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  - ESD Guards
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert 2+
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  ASUS Q-Design :
  - ASUS Q-DIMM
  M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

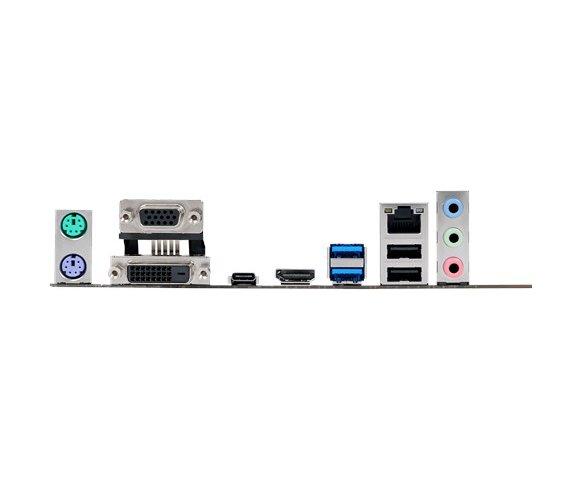

• Back I/O Ports

  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
  2 x USB 3.0 (blue) Type-A
  2 x USB 2.0
  3 x Audio jack(s)
