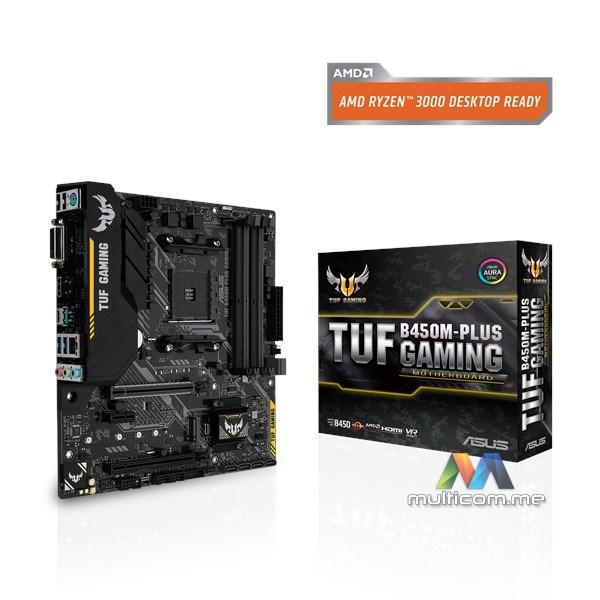

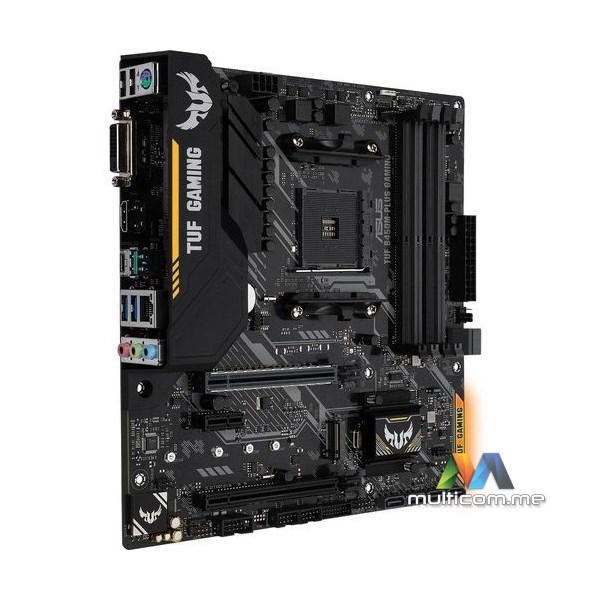

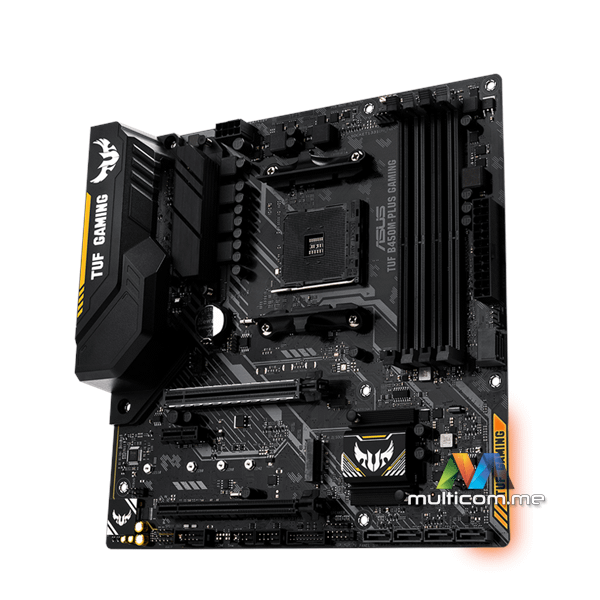

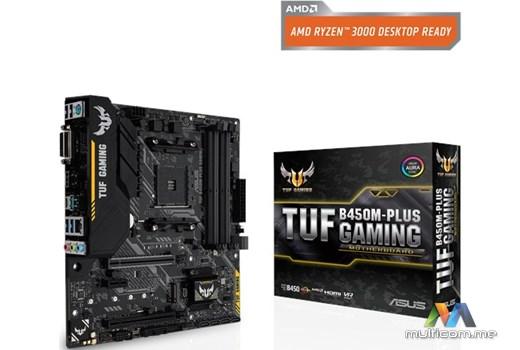

ASUS B450M-PLUS GAMING Maticna ploca

AMD

AMD® AM4

AMD® B450

Micro ATX

AMD AM4 Socket AMD Ryzen™ druge generacije/ Ryzen™ sa Radeon™ Vega grafikom/ Ryzen™ prve generacije.

DDR4

4 x DIMM, maksimalni podržani kapacitet 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz nebaferovane memorije
Dvokanalna arhitektura memorije.

Podržava AMD CrossFireX™ Technology

AMD Ryzen™ sa Radeon™ Vega grafičkim procesorom
Multi-VGA output podrška: HDMI/DVI-D portovi
- DVI-D, maksimalna rezolucija 1920 x 1200 @ 60 Hz
- HDMI 2.0b maksimalna rezolucija 4096 x 2160 @ 60 Hz

AMD Ryzen™ druge generacije/Ryzen™ prve generacije:
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ sa Radeon™ Vega grafikom:
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B450 chipset:
1 x PCIe 2.0 x16 (max at x4 mode)
1 x PCIe 2.0 x1

AMD Ryzen™ druge generacije/Ryzen™ sa Radeon™ Vega grafikom/Ryzen™ prve generacije:
1 x M.2 Socket 3, sa M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
2 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
AMD B450 chipset:
4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 10

Realtek® RTL8111H
TUF LANGuard

Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
Audio Feature :
- Ekskluzivni DTS za GAMING Headsets.
- Audio Shielding: obezbeđuje preciznu analogno/digitalnu separaciju i značajno smanjuje multilateralnu interferenciju
- Namenski audio PCB slojevi: odvojeni slojevi za levi i desni kanal kako bi sačuvali kvalitet osetljivih audio signala
- Premijum japanski kondenzatori: obezbeđuju topao i prirodan zvuk sa izuzetnom vernošću i jasnoćom

AMD Ryzen™ druge generacije/Ryzen™ sa Radeon™ Vega grafikom/Ryzen™ prve generacije:
2 x USB 3.1 Gen 1 port(s) (2 na zadnjem panelu)
1 x USB 3.1 Gen 1 port(s) (1 na zadnjem panelu, , USB Type-C)
AMD B450 chipset :
1 x USB 3.1 Gen 2 port(s) (1 na zadnjem panelu )
AMD B450 chipset :
2 x USB 3.1 Gen 1 port(s) (2 na midboard-u)
AMD B450 chipset :
6 x USB 2.0 port(s) (2 na zadnjem panelu, , 4 na midboard-u)

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 Type-A,
1 x USB 3.1 Gen 1 (blue) USB Type-CTM,
2 x USB 2.0
2 x USB 3.1 Gen 1 (blue)
3 x Audio jack(s)

1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, višejezični BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
AURA :
- Aura Lighting Control
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
